53242-6

53242-6图片1
53242-6图片2
53242-6图片3
53242-6图片4
53242-6图片5
53242-6图片6

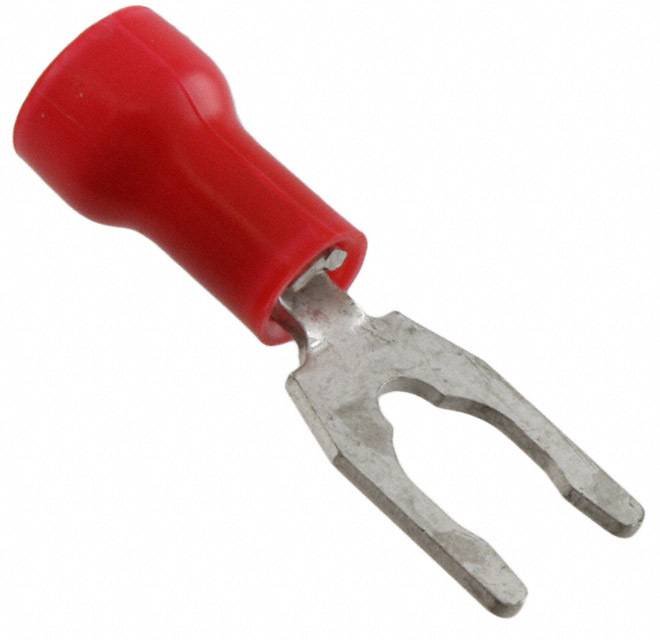

53242-6图片7
53242-6概述

Spring Spade Terminal 16-22AWG 24.61mm 7.47mm Tin T/R

PG SPR SPD 22-16COM22-18MIL 10


得捷:
CONN SPADE TERM 16-22AWG #10 RED


艾睿:
Look no further than the spring spade terminal 53242-6 wire terminal from TE Connectivity for applications requiring terminal connections. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This product is 24.61 mm long and 7.47 mm. Its wire is 16-22 AWG.


安富利:
Spring Spade Terminal 16-22AWG 24.61mm 7.47mm Tin T/R


Chip1Stop:
Spring Spade Terminal 16-22AWG 24.61mm 7.47mm Tin T/R


Verical:
Spring Spade Terminal 16-22AWG Brass Red 24.61mm Tin T/R


MASTER:
TERMINAL, SPRING SPADE, SHORT, PLASTI-GRIP, WIRE SIZE: 22-16


Powell:
Ring and Spade Tongue Terminals


Online Components:
PG SPR SPD 22-16COM22-18MIL 10


Electro Sonic:
PG SPR SPD 22-16COM22-18MIL 10


53242-6中文资料参数规格
技术参数

线规 16AWG ~ 22AWG

额定电压Max 600 VAC

额定电压 600 VAC

外形尺寸

长度 24.61 mm

宽度 7.47 mm

物理参数

颜色 Red

触点材质 Brass

材质 Brass

绝缘材质 PVC

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

ELV标准 Compliant

海关信息

ECCN代码 EAR99

HTS代码 8536904000

数据手册

在线购买53242-6
型号: 53242-6
描述:Spring Spade Terminal 16-22AWG 24.61mm 7.47mm Tin T/R
