0402 30pF ±5% 50V C0G
30pF ±5% 50V Ceramic Capacitor C0G, NP0 0402 1005 Metric
立创商城:
30pF ±5% 50V
得捷:
CAP CER 30PF 50V C0G/NP0 0402
艾睿:

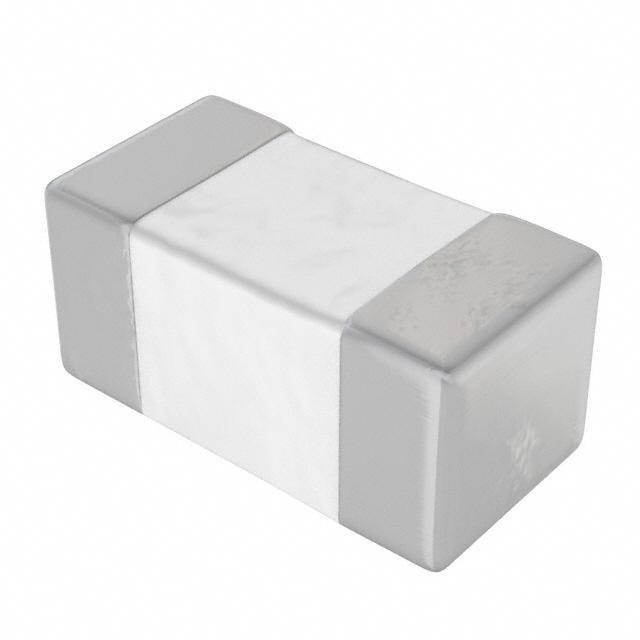

Since this 500R07S300JV4T multilayer ceramic capacitor from Johanson has multiple layers of dielectric and electrodes, you&s;ll be getting high stability and low losses for resonant circuit applications. It can withstand a voltage of 50 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. Its capacitance value is 30pF. This product is 1.02 mm long, 0.51 mm tall and 0.51 mm deep. It has a tolerance of 5%.
Verical:
Cap Ceramic 30pF 50V C0G 5% Pad SMD 0402 125C Ultra Low ESR T/R
RfMW:
Hi-Q MLCC 0402,30pF,±5%
额定电压DC 50 V
电容 30 pF
容差 ±5 %
产品系列 High-Q
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 50 V
安装方式 Surface Mount
封装公制 1005
封装 0402
长度 1 mm
宽度 0.5 mm
高度 0.51 mm
封装公制 1005
封装 0402
材质 C0G/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Unknown
包装方式 Tape & Reel TR
最小包装 10000
制造应用 RF,微波,高频
RoHS标准 RoHS Compliant
含铅标准 Lead Free
