5ET 1-R

5ET 1-R图片1

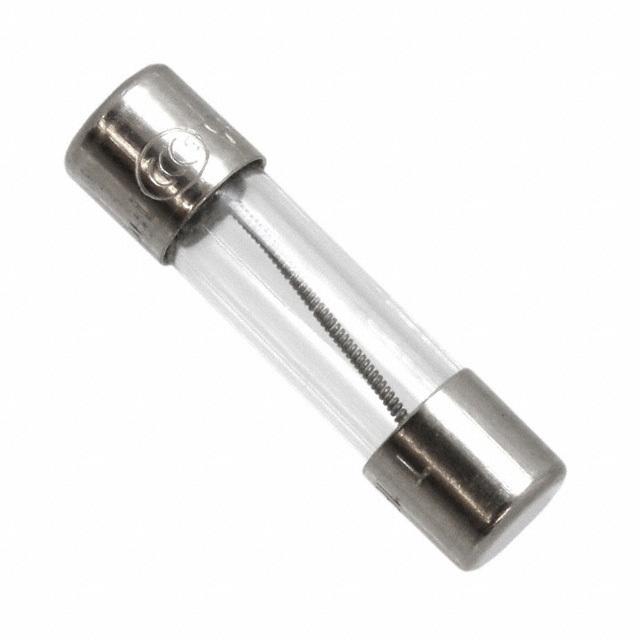

5ET 1-R图片2
5ET 1-R图片3
5ET 1-R图片4
5ET 1-R概述

保险丝管

1A 250V AC DC Fuse Cartridge, Glass Holder 5mm x 20mm


得捷:
FUSE GLASS 1A 250VAC 5X20MM


贸泽:
保险丝管


艾睿:
A great alternative to a circuit breaker, this a miniature 5ET 1-R fuse from Bel Fuse will protect your electronics. Its maximum power dissipation is 0.42 W. This device has a current rating of 1. This device has a maximum power dissipation of 0.42 W. This fuse has a minimum operating temperature of -55 °C and a maximum of 125 °C. It has 2 terminals. The 5ET 1-R fuse has a cartridge termination style. Its fuse is made from glass. The maximum AC voltage rating is 250 VAC. This product is 20 mm long with a diameter of 5.1 mm.


安富利:
Fuse Miniature 1A 250V Slow Blow 2-Pin Cartridge Holder


Chip1Stop:
Fuse Miniature Slow Blow Acting 1A 250V Holder Cartridge 5 X 20mm Glass


5ET 1-R中文资料参数规格
技术参数

额定电压DC 250 V

额定电压AC 250 V

额定电流 1 A

耗散功率 0.42 W

电阻 111 mΩ

工作温度Max 125 ℃

工作温度Min -55 ℃

耗散功率Max 0.42 W

额定电压 250 V

额定电压AC Max 250 V

外形尺寸

长度 20 mm

直径 5.10 mm

物理参数

工作温度 -55℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

5ET 1-R引脚图与封装图
5ET 1-R引脚图
5ET 1-R封装图
5ET 1-R封装焊盘图
