保险丝管

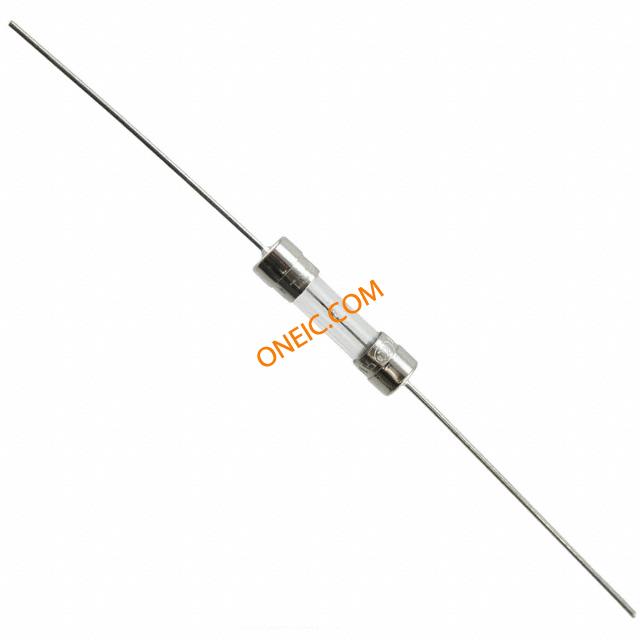

3.15A 250V AC DC Fuse Cartridge, Glass Through Hole 5mm x 20mm Axial
得捷:
FUSE GLASS 3.15A 250VAC 5X20MM
贸泽:
保险丝管
艾睿:
A great alternative to a circuit breaker, this a miniature 5STP 3.15-R fuse from Bel Fuse will protect your electronics. Its maximum power dissipation is 0.36 W. This device has a current rating of 3.15. This device has a maximum power dissipation of 0.36 W. This fuse has a minimum operating temperature of -55 °C and a maximum of 125 °C. It has 2 terminals. The 5STP 3.15-R fuse has an axial termination style. This product is 21 mm long with a diameter of 5.5 mm. Its fuse is made from glass. The maximum AC voltage rating is 250 VAC.
安富利:
Fuse Miniature 3.15A 250V Slow Blow 2-Pin Axial Through Hole
Chip1Stop:
Fuse Miniature Slow Blow Acting 3.15A 250V Axial 5 X 20mm Glass CCC/CE/CSA/SEMKO/VDE/cULus
Verical:
Fuse Miniature Slow Blow Acting 3.15A 250V Axial 5 X 20mm Glass CCC/CE/CSA/SEMKO/VDE/cULus
额定电压DC 250 V
额定电压AC 250 V
额定电流 3.15 A
耗散功率 0.36 W
电阻 0.017 Ω
工作温度Max 125 ℃
工作温度Min -55 ℃
耗散功率Max 0.36 W
额定电压 250 V
额定电压AC Max 250 V
安装方式 Through Hole
引脚数 2
封装 5mm x 20mm Axial
长度 21 mm
直径 5.50 mm
封装 5mm x 20mm Axial
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
