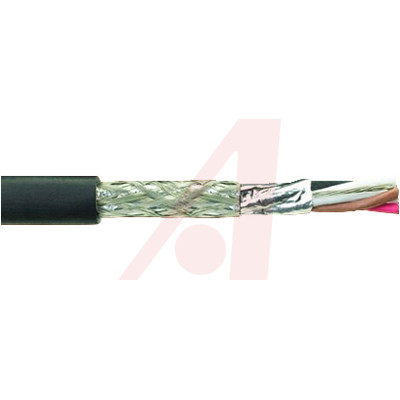

ALPHA WIRE 5610B2201 NC001 Multipair Shielded Cable, Instrumentation, Black, 1 Pair, 22AWG, 0.35mm², 1000Ft, 304.8m
Overall Shielded Multipair Cable, 300 V, Communication and Control
** Features**
* Stranded Bare Copper Conductors
* Extruded PVC Insulation
* Paired Construction Color-Coded — One Black, One White; Triple Constructions Color-Coded Black, White and Red
* All Pairs and Triples Twisted To Minimize Magnetic Noise
* White Conductor Multi-Pairs and Multi-Triples Printed with a Pair or Triple Number at 1" 25.4 mm Intervals for Easy Identification
* When Shielded, Aluminum Polyester Shield Tape and Tinned Copper Drain Wire Provided for Maximum Electrostatic Noise and Cross Talk Rejection
* Extruded Black PVC Jacket Meets 70,000 BTU Flame Test
* Temperature Range: -20°C to +105°C UL Static Conditions
* Rating: 300 Volts UL
* An Economical, General Purpose, Flame Retardant Construction with Excellent Chemical and Abrasion Resistance
* UL Listed Under Standard 13
* Complies With NEC Article 725, Type PLTC
* Available in Long Continuous Lengths
