57003 SL001

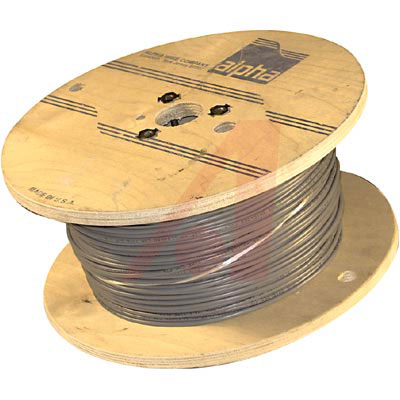

57003 SL001图片1
57003 SL001图片2
57003 SL001图片3
57003 SL001图片4
57003 SL001概述

Cable, Shielded; 3; 24AWG; 7 x 32; Aluminum/Polyester; 0.121in.; 0.015in.

Multiconductor cable rated for plenum use is manufactured to higher standards due to the need of the cable to survive harsh conditions should they occur.


得捷:
CABLE 3COND 24AWG SHLD 1000"


贸泽:
Multi-Conductor Cables 24AWG3C SHIELD 1000ft SPOOL SLATE


Allied Electronics:
Cable, Shielded; 3; 24 AWG; 7 x 32; Aluminum/Polyester; 0.121 in.; 0.015 in.


Newark:
# ALPHA WIRE  57003 SL001  57003 SLATE 1000 FT


57003 SL001中文资料参数规格
技术参数

线规 24 AWG

额定电压DC 150 V

屏蔽 Yes

芯数 3

工作温度Max 60 ℃

工作温度Min -20 ℃

额定电压 150 V

外形尺寸

长度 304.8 m

物理参数

颜色 Slate

绝缘材质 PVC

工作温度 -5℃ ~ 75℃

导体材质 Bare Copper

外壳材质 PVC

其他

产品生命周期 Active

包装方式 Coil

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买57003 SL001
型号: 57003 SL001
制造商: Alpha Wire
描述:Cable, Shielded; 3; 24AWG; 7 x 32; Aluminum/Polyester; 0.121in.; 0.015in.
