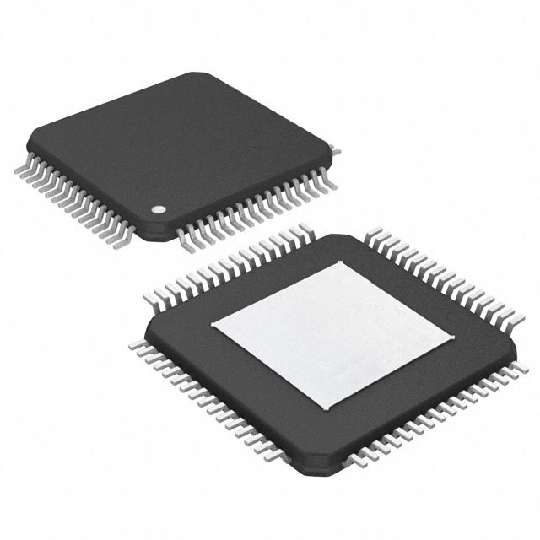

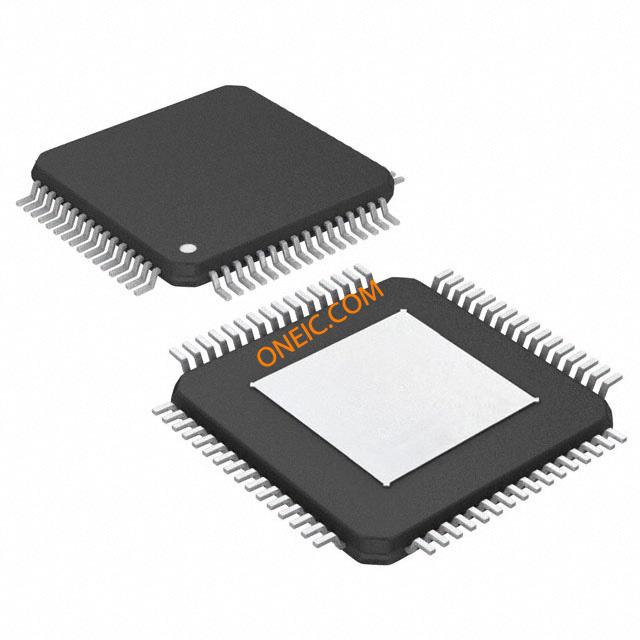

5M160ZE64C5N

ALTERA  5M160ZE64C5N  可编程逻辑芯片, CPLD, MAX V系列, 160 LE, 64EQFP

The is a surface mount Flash Complex Programmable Logic Device with 160 logic elements. The MAX® V low power CPLDs offer more density and I/Os per footprint versus other CPLDs. MAX® V device features on-chip flash storage, internal oscillator and memory functionality. With up to 50% lower total power versus other CPLDs and requiring as few as one power supply. The CPLDs standby current is as low as 25µA and fast power-down/reset operation. User flash memory block up to 8kb for non-volatile storage with up to 1000 read/write cycles.

.

Instant-on 0.5ms or less configuration time

.

Fast propagation delay and clock-to-output times

.

Internal oscillator

.

Emulated RSDS output support with a data rate of up to 200Mbps

.

Emulated LVDS output support with a data rate of up to 304Mbps

.

Schmitt triggers enabling noise tolerant inputs

ESD sensitive device, take proper precaution while handling the device.
