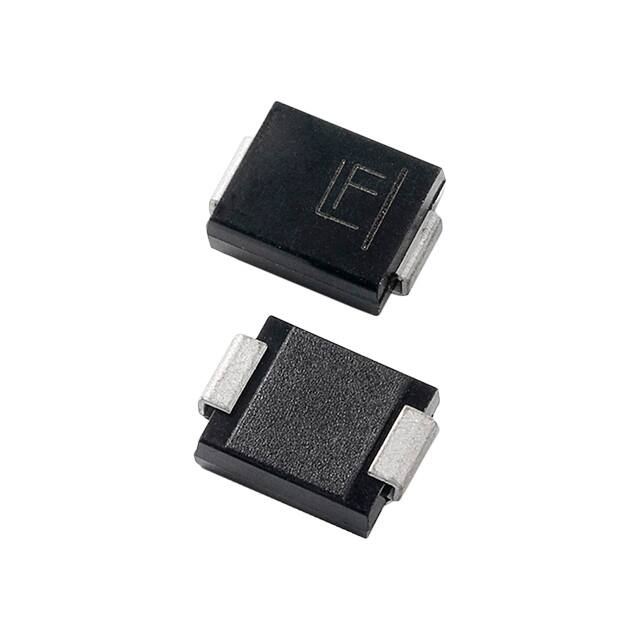

LITTELFUSE 5.0SMDJ15CA TVS二极管, TVS, 5.0SMDJ系列, 双向, 15 V, 24.4 V, DO-214AB, 2 引脚
Description
The 5.0SMDJ series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
Applications
TVS devices are ideal for the protection of I/O Interfaces, VCC bus and other vulnerable circuits used in Telecom,
Computer, Industrial and Consumer electronic applications.
欧时:
TVS 5KW 15V 5%BI DO-214AB TR13 RoHS
得捷:
TVS DIODE 15VWM 24.4VC DO214AB
贸泽:
ESD 抑制器/TVS 二极管 5kW 15V 5% Bi-Directional
e络盟:
# LITTELFUSE 5.0SMDJ15CA TVS二极管, TVS, 5.0SMDJ系列, 双向, 15 V, 24.4 V, DO-214AB, 2 引脚
艾睿:
Diode TVS Single Bi-Dir 15V 5KW 2-Pin DO-214AB T/R
Chip1Stop:
Diode TVS Single Bi-Dir 15V 5KW 2-Pin DO-214AB T/R
Verical:
Diode TVS Single Bi-Dir 15V 5KW 2-Pin SMC T/R
工作电压 15 V
击穿电压 16.7 V
电路数 1
针脚数 2
耗散功率 5 kW
钳位电压 24.4 V
最大反向电压（Vrrm） 15V
测试电流 1 mA
最大反向击穿电压 18.5 V
脉冲峰值功率 5000 W
最小反向击穿电压 16.7 V
击穿电压 16.7 V
工作温度Max 150 ℃
工作温度Min -65 ℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AB-2
长度 7.11 mm
宽度 6.22 mm
高度 2.62 mm
封装 DO-214AB-2
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
