瞬态电压抑制二极管 Transient Voltage Suppression Diodes
87.1V 夹子 57.5A Ipp TVS - 表面贴装型 DO-214AB（SMCJ）
得捷:
TVS DIODE 54VWM 87.1VC DO214AB
贸泽:
ESD 抑制器/TVS 二极管 5kW 54V 5% Uni-Directional
e络盟:
TVS二极管, 5.0SMDJ Series, 单向, 54 V, 87.1 V, DO-214AB, 2 引脚
艾睿:
Sleep easy, never worry about surges again with this 5.0SMDJ54A TVS diode from Littelfuse. Its test current is 1 mA. Its peak pulse power dissipation is 5000 W. This device&s;s maximum clamping voltage is 87.1 V and minimum breakdown voltage is 60 V. Its maximum leakage current is 5 μA. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 150 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery.
Chip1Stop:
Diode TVS Single Uni-Dir 54V 5KW 2-Pin DO-214AB T/R
Verical:
TVS Diode Single Uni-Dir 54V 5KW 2-Pin SMC T/R
Win Source:
TVS DIODE 54VWM 87.1VC SMD
工作电压 54 V
击穿电压 60 V
电路数 1
针脚数 2
钳位电压 87.1 V
测试电流 1 mA
最大反向击穿电压 66.3 V
脉冲峰值功率 5000 W
最小反向击穿电压 60 V
击穿电压 60 V
工作温度Max 150 ℃
工作温度Min -65 ℃
工作结温 -65℃ ~ 150℃

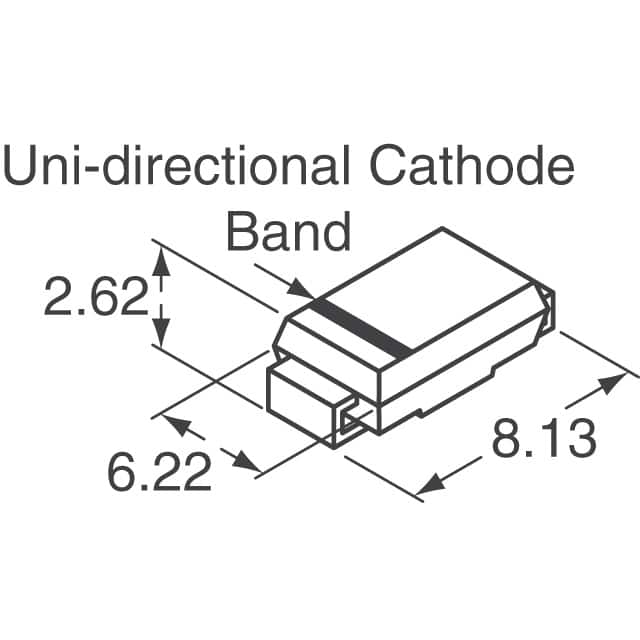

安装方式 Surface Mount
引脚数 2
封装 DO-214AB-2
长度 7.11 mm
宽度 6.22 mm
高度 2.62 mm
封装 DO-214AB-2
工作温度 -65℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用, 电信
RoHS标准 RoHS Compliant
含铅标准 Lead Free
