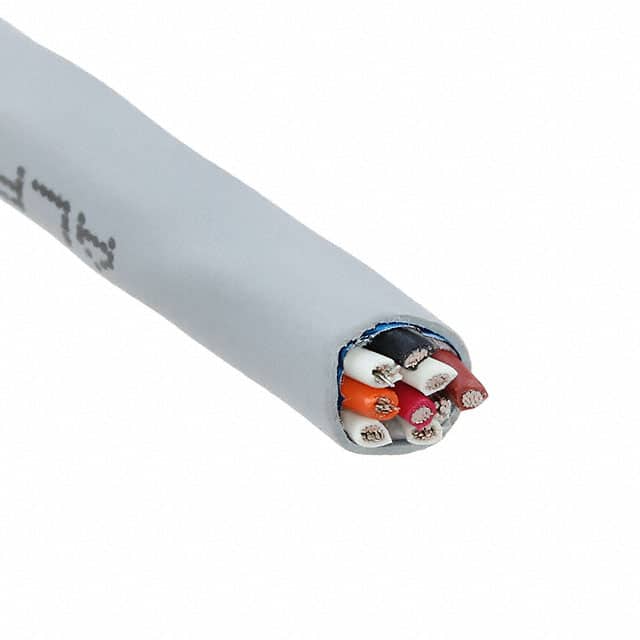

Cable, Shielded; 4; 24AWG; 7/32; Aluminum/Foil/Aluminum; 0.28in.; 0.01in.
The is a 100ft 4-pair sunlight resistant SupraShield® high-performance Cable with stranded tinned copper conductors and premium semi-rigid PVC insulation. It features unique, premium-grade PVC jacket for easier routing of cable in small spaces. It is shielded with 25% minimum overlap of aluminium/polyester/aluminium foil, tinned copper braid with 70% shield coverage and tinned copper drain wire sized the same as conductors.
线规 24 AWG
额定电压DC 300 V
屏蔽 Yes
芯数 8
工作温度Max 80 ℃
工作温度Min -20 ℃
额定电压Max 300 VAC
额定电压 300 V
长度 30.5 m
颜色 Slate
绝缘材质 PVC
工作温度 -35℃ ~ 105℃
导体材质 Tinned Copper
外壳材质 PVC
产品生命周期 Active
包装方式 Coil
制造应用 Industrial, Mining, Oil & Gas
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
