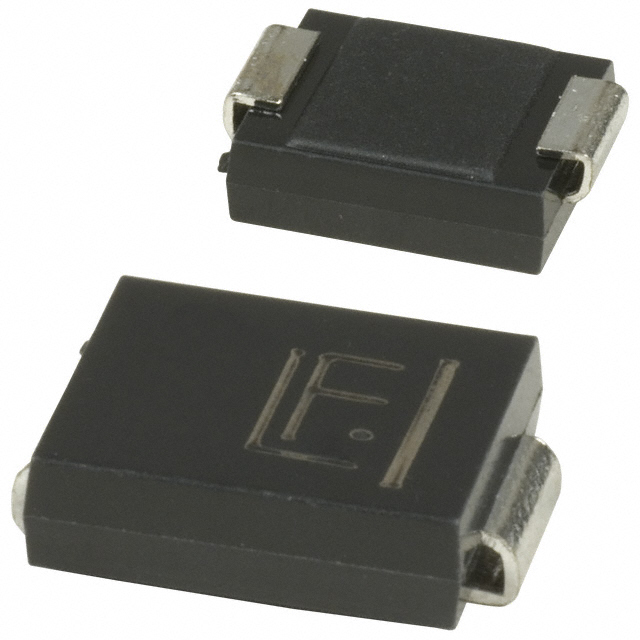

5.0SMDJ系列 38.9V 5kW 表面贴装 双向 瞬态电压抑制二极管 DO-214AB
Description
The 5.0SMDJ series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
Applications
TVS devices are ideal for the protection of I/O Interfaces, VCC bus and other vulnerable circuits used in Telecom,
Computer, Industrial and Consumer electronic applications.
得捷:
TVS DIODE 24VWM 38.9VC DO214AB
立创商城:
Vrwm:24V 5kW
贸泽:
ESD 抑制器/TVS 二极管 5kW 24V 5% Bi-Directional
艾睿:
Diode TVS Single Bi-Dir 24V 5KW 2-Pin DO-214AB T/R
Chip1Stop:
Diode TVS Single Bi-Dir 24V 5KW 2-Pin DO-214AB T/R
Verical:
Diode TVS Single Bi-Dir 24V 5KW 2-Pin DO-214AB T/R
Win Source:
TVS DIODE 24VWM 38.9VC SMD
工作电压 24 V
电容 7000 pF
击穿电压 26.7 V
电路数 1
针脚数 2
耗散功率 6.5 W
钳位电压 38.9 V
测试电流 1 mA
最大反向击穿电压 29.5 V
脉冲峰值功率 5000 W
最小反向击穿电压 26.7 V
击穿电压 26.7 V
工作温度Max 150 ℃
工作温度Min -65 ℃
工作结温 -65℃ ~ 150℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AB-2
长度 7.11 mm
宽度 6.22 mm
高度 2.62 mm
封装 DO-214AB-2
工作温度 -65℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
