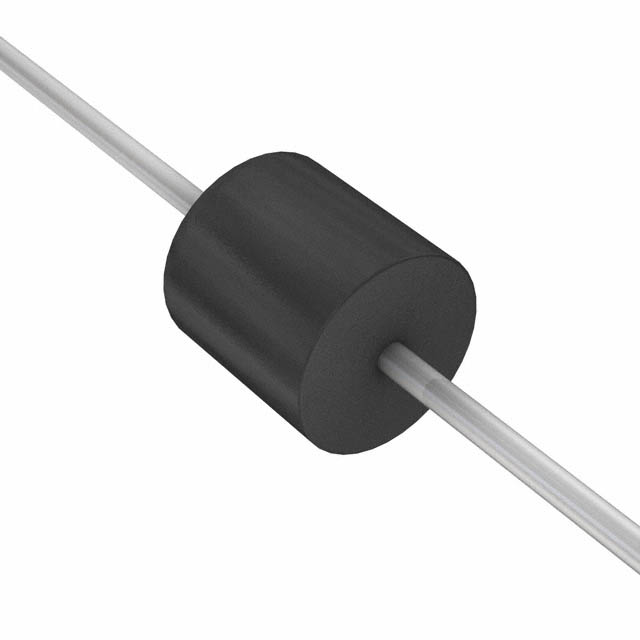

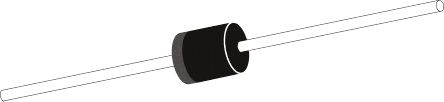

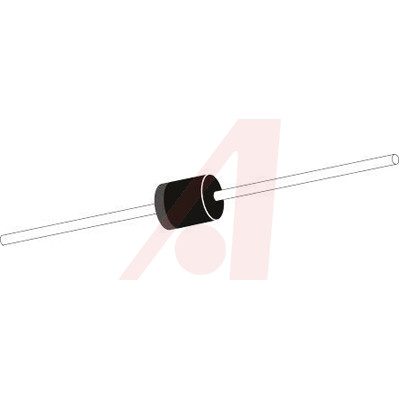

VISHAY 5KP36A-E3/54 TVS二极管, TVS, AEC-Q101 TRANSZORB 5KP系列, 单向, 36 V, 58.1 V, P600, 2 引脚
The TRANSZORB 5KP series Transient Voltage Suppressor Diode offers 5000W peak pulse power capability with a 10/1000µs waveform, 0.01% repetitive rate duty cycle. It is used in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET and signal lines of sensor units.
- .
- P600 glass passivated chip junction
- .
- Available in unidirectional polarity
- .
- Excellent clamping capability
- .
- Very fast response time
- .
- Low incremental surge resistance
- .
- -55 to 175°C Operating junction temperature range
工作电压 36 V
额定电流 86.1 A
击穿电压 40 V
电路数 1
针脚数 2
耗散功率 5000 W
钳位电压 58.1 V
测试电流 5 mA
最大反向击穿电压 44.2 V
脉冲峰值功率 5 kW
最小反向击穿电压 40 V
工作温度Max 175 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 175℃
工作结温Max 175 ℃
安装方式 Through Hole
引脚数 2
封装 P-600
长度 9.1 mm
封装 P-600
工作温度 -55℃ ~ 175℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Computers & Computer Peripherals, Consumer Electronics, Industrial, 通用, Automotive, Lighting, Communications & Networking, 车用, Sensing & Instrumentation
RoHS标准 RoHS Compliant
含铅标准 Lead Free
