Thermoelectric voltage term block pair; USA type N; Screw conn; 1POS; W:10.4mm

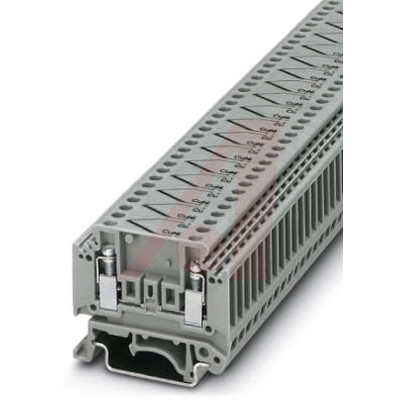

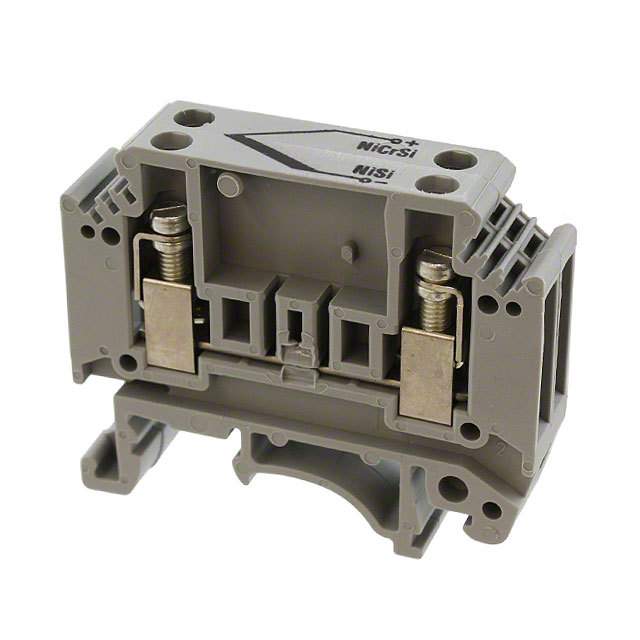

**Thermoelectric voltage terminal block pair
**Thermoelectric voltage terminal block with bolt connection technology, cross section: 0.1 - 6 mm2, AWG: 26 - 10, width: 16.3 mm, color: gray
**Features:**
* The special clamping nuts can be actuated with a normal screwdriver
* Easy bridging and potential distribution using the patented plug-in bridges from the CLIPLINE complete system
* The screws are secured against loosening by captive spring-loaded spacers
* Quick and easy connection thanks to hinged cover flaps which hold the clamping nuts captive. When the flaps are open, the connection bolt is freely accessible and the cable lugs can be hooked in; after closing and engaging the flaps
* Large-surface labeling options in the terminal center and above the terminal points
* The hinged cover cover the live metal parts including the insulated cable lugs in the clamping area so that they are touch proof
* The use of the switching lock effectively prevents unintentional switching
* Testing with the standardized test adapters and test plugs of the CLIPLINE complete system
