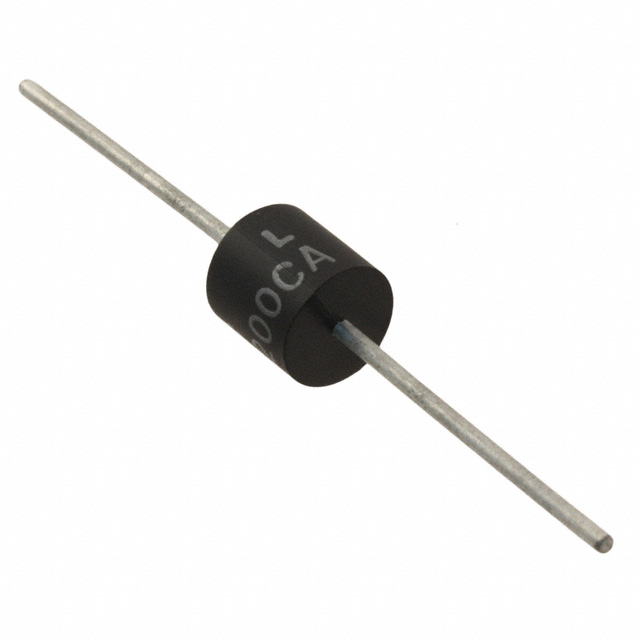

5KP130CA-TP

双向 Vrwm:130V

209V 夹子 - Ipp TVS - 通孔 R-6

得捷:
TVS DIODE 130VWM 209VC R6

立创商城:
双向 Vrwm:130V 5kW

艾睿:
Protect vulnerable electronic circuits against overvoltages by equipping your device with this 5KP130CA-TP TVS diode from Micro Commercial Components. Its maximum leakage current is 10 μA. Its peak pulse power dissipation is 5000 W. This device&s;s maximum clamping voltage is 209 V and minimum breakdown voltage is 144 V. Its test current is 5 mA. This TVS diode has an operating temperature range of -55 °C to 175 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery.
