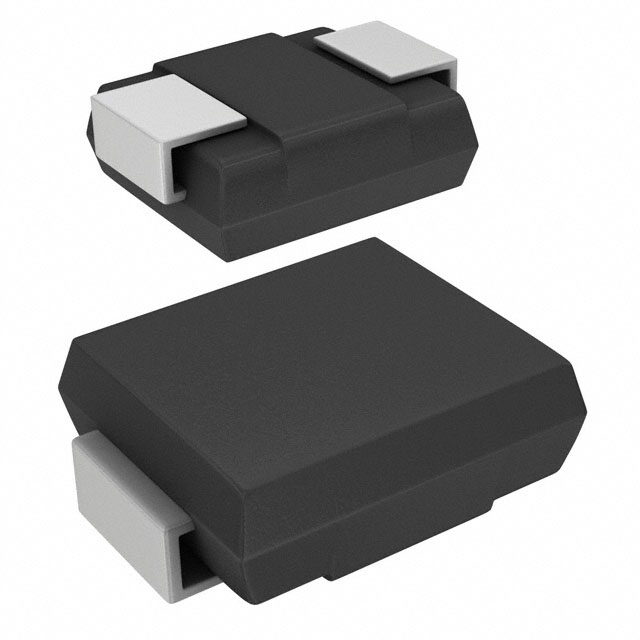

5.0SMLJ15A-TP

Diode TVS Single Uni-Dir 15V 5kW 2Pin SMC T/R

24.4V 夹子 205A Ipp TVS - 表面贴装型 DO-214AB（SMC）

得捷:
TVS DIODE 15VWM 24.4VC DO214AB

立创商城:
Vrwm:15V 5kW

艾睿:
Prevent your circuits from experiencing malfunctions from electrostatic discharge with this 5.0SMLJ15A-TP TVS diode from Micro Commercial Components. Its test current is 1 mA. Its peak pulse power dissipation is 5000Min W. This device&s;s maximum clamping voltage is 24.4 V and minimum breakdown voltage is 16.7 V. Its maximum leakage current is 100 μA. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 175 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment.
