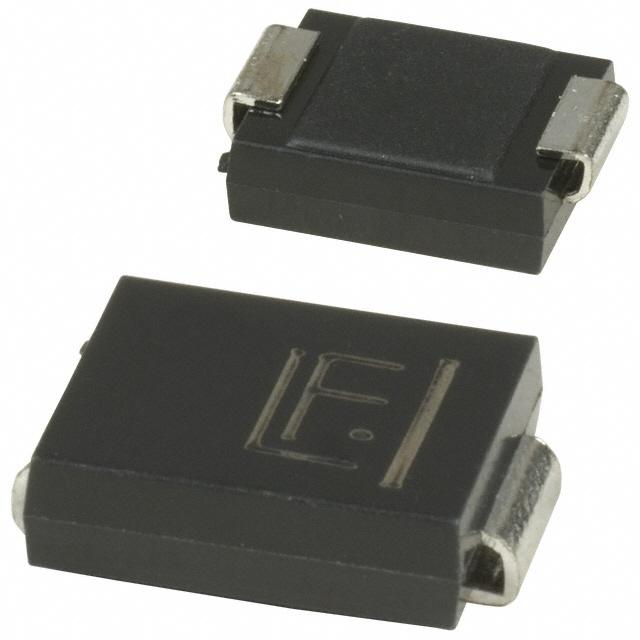

瞬态电压抑制二极管 Transient Voltage Suppression Diodes
Description
The 5.0SMDJ series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
Applications
TVS devices are ideal for the protection of I/O Interfaces, VCC bus and other vulnerable circuits used in Telecom,
Computer, Industrial and Consumer electronic applications.
得捷:
TVS DIODE 26VWM 42.1VC DO214AB
立创商城:
Vrwm:26V 5kW
贸泽:
ESD 抑制器/TVS 二极管 5kW 26V 5% Uni-Directional
艾睿:
Protect vulnerable electronic circuits against overvoltages by equipping your device with this 5.0SMDJ26A TVS diode from Littelfuse. Its maximum leakage current is 5 μA. This device&s;s maximum clamping voltage is 42.1 V and minimum breakdown voltage is 28.9 V. Its test current is 1 mA. Its peak pulse power dissipation is 5000 W. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 150 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery.
Chip1Stop:
Diode TVS Single Uni-Dir 26V 5KW 2-Pin DO-214AB T/R
工作电压 26 V
击穿电压 28.9 V
电路数 1
钳位电压 42.1 V
最大反向电压(Vrrm) 26V
测试电流 1 mA
脉冲峰值功率 5000 W
最小反向击穿电压 28.9 V
工作温度Max 150 ℃
工作温度Min -65 ℃
工作结温 -65℃ ~ 150℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AB-2
长度 7.11 mm
宽度 6.22 mm
高度 2.62 mm
封装 DO-214AB-2
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准
