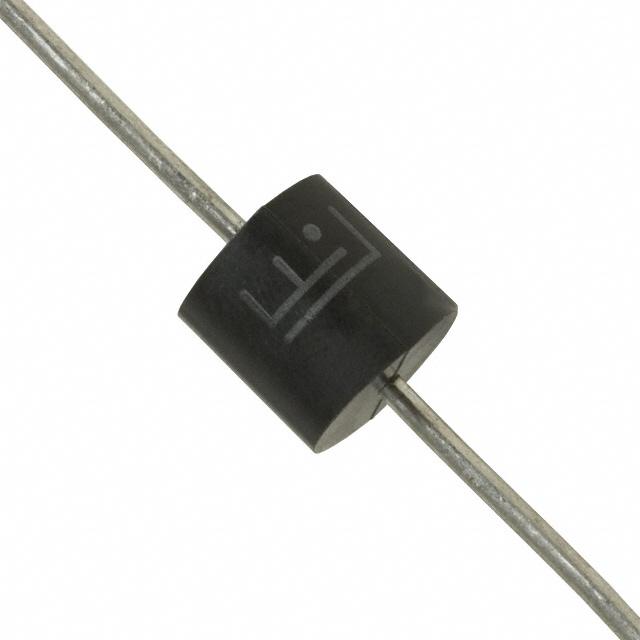

5KP30CA

LITTELFUSE  5KP30CA  二极管, TVS, 5KW, 30V, P600, 整卷

48.4V 夹子 105.4A Ipp TVS - 通孔 P600

欧时:
TVS AXIAL HI-POWER - 5KP30CA CR T/R

得捷:
TVS DIODE 30VWM 48.4VC P600

立创商城:
Vrwm:30V 5kW

e络盟:
TVS二极管, 5KP Series, 双向, 30 V, 48.4 V, P600, 2 引脚

艾睿:
Get protected with this 5KP30CA TVS diode manufactured from Littelfuse. Its test current is 5 mA. Its maximum leakage current is 2 μA. Its peak pulse power dissipation is 5000 W. This device&s;s maximum clamping voltage is 48.4 V and minimum breakdown voltage is 33.3 V. This TVS diode has an operating temperature range of -55 °C to 175 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery.

Chip1Stop:
Diode TVS Single Bi-Dir 30V 5KW 2-Pin Case P-600 T/R

TME:
Diode: transil; 5kW; 35.1V; 105.4A; bidirectional; ±5%; P600

Verical:
TVS Diode Single Bi-Dir 30V 5KW 2-Pin Case P-600 T/R

Newark:
# LITTELFUSE  5KP30CA  TVS Diode, 5KP Series, Bidirectional, 30 V, 48.4 V, P600, 2 Pins

Win Source:
TVS DIODE 30VWM 48.4VC P600
