5KP系列 72.7V 5kW 通孔 双向 瞬态电压抑制二极管 P-600
72.7V 夹子 70.2A Ipp TVS - 通孔 P600
得捷:
TVS DIODE 45VWM 72.7VC P600
立创商城:
Vrwm:45V 5kW
艾睿:
Sleep easy, never worry about surges again with this 5KP45CA TVS diode from Littelfuse. Its maximum leakage current is 2 μA. Its peak pulse power dissipation is 5000 W. Its test current is 5 mA. This device&s;s maximum clamping voltage is 72.7 V and minimum breakdown voltage is 50 V. This TVS diode has an operating temperature range of -55 °C to 175 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment.
Chip1Stop:
Diode TVS Single Bi-Dir 45V 5KW 2-Pin Case P600 T/R
TME:
Diode: transil; 5kW; 52.7V; 70.2A; bidirectional; ±5%; P600
Verical:
TVS Diode Single Bi-Dir 45V 5KW 2-Pin Case P-600 T/R
Newark:
# LITTELFUSE 5KP45CA TVS Diode, 5KP Series, Bidirectional, 45 V, 72.7 V, P600, 2 Pins
额定电压DC 45.0 V
额定功率 5.00 kW
击穿电压 50 V
电路数 1
耗散功率 5000 W
钳位电压 72.7 V
测试电流 5 mA
最大反向击穿电压 55.3 V
脉冲峰值功率 5000 W
最小反向击穿电压 50 V
击穿电压 50 V
工作温度Max 175 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 175℃
安装方式 Through Hole
引脚数 2

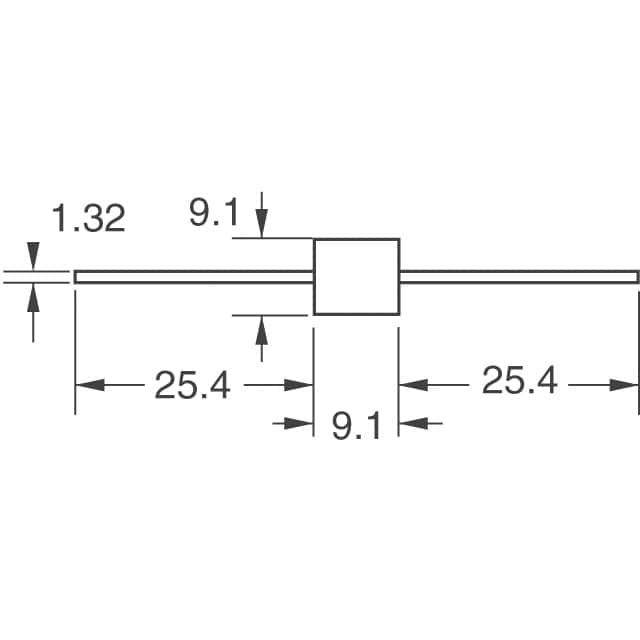

封装 P-600
长度 9.1 mm
直径 9.10 mm
封装 P-600
工作温度 -55℃ ~ 175℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
