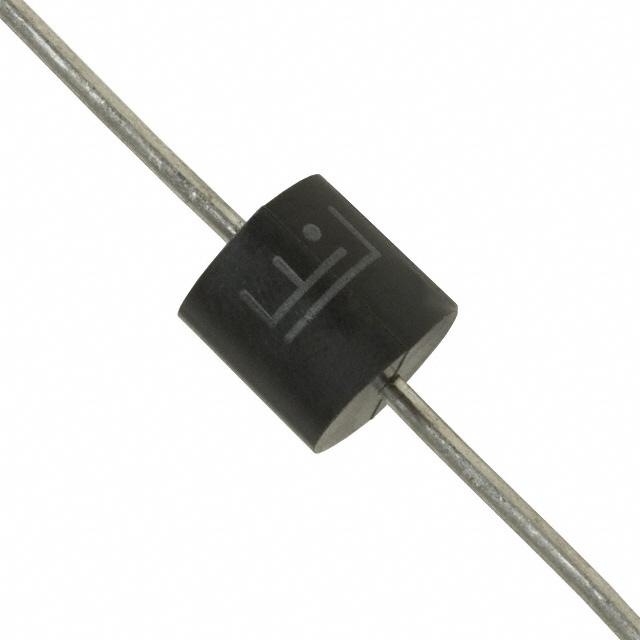

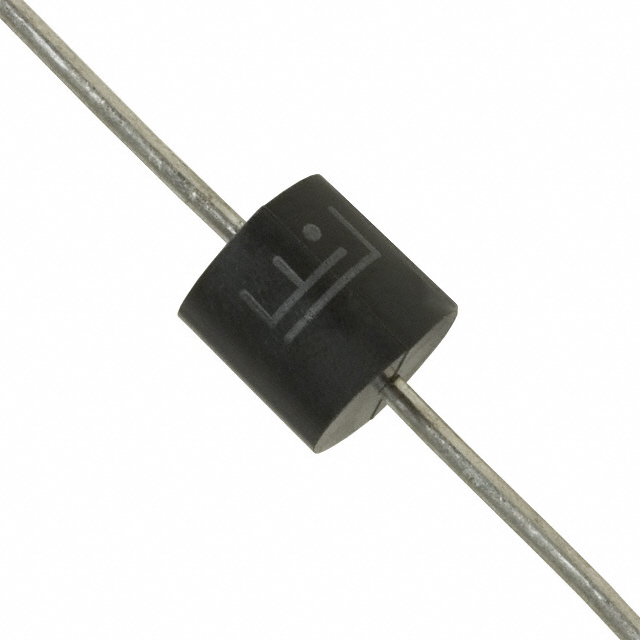

5KP54A

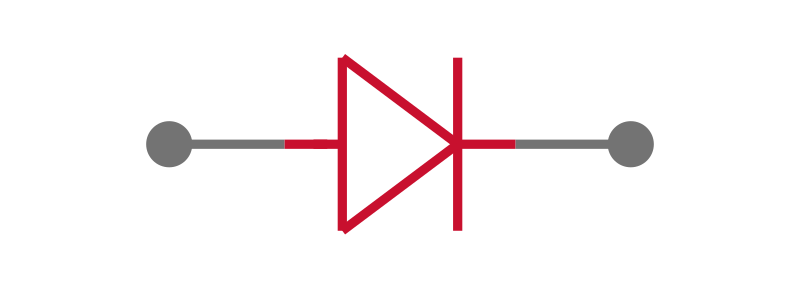

瞬态电压抑制二极管 Transient Voltage Suppression Diodes

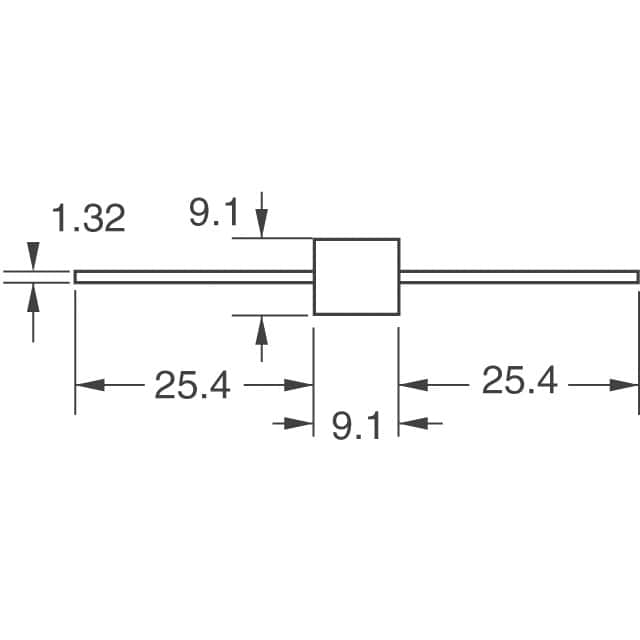

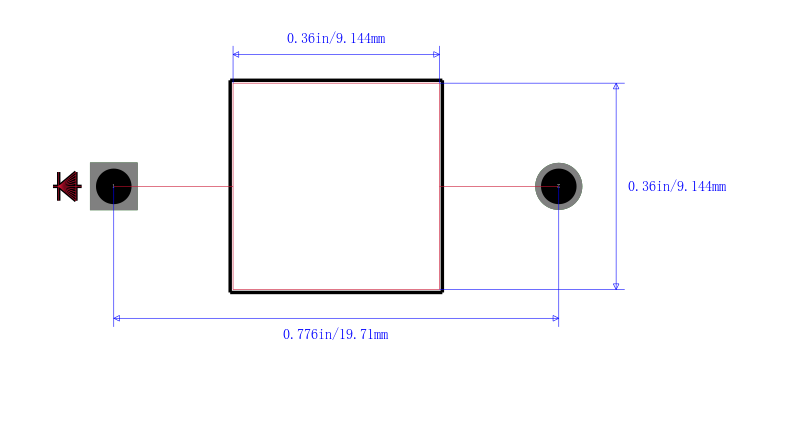

87.1V 夹子 58.6A Ipp TVS - 通孔 P600

得捷:
TVS DIODE 54VWM 87.1VC P600

立创商城:
Vrwm:54V 5kW

艾睿:
Protect users and systems from overvoltage conditions by equipping your electronic equipment with Littelfuse&s;s 5KP54A TVS diode. This device&s;s maximum clamping voltage is 87.1 V and minimum breakdown voltage is 60 V. Its peak pulse power dissipation is 5000 W. Its maximum leakage current is 2 μA. Its test current is 5 mA. This TVS diode has an operating temperature range of -55 °C to 175 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery.

Chip1Stop:
Diode TVS Single Uni-Dir 54V 5KW 2-Pin Case P600 T/R

Verical:
TVS Diode Single Uni-Dir 54V 5KW 2-Pin Case P-600 T/R

Win Source:
TVS DIODE 54VWM 87.1VC AXIAL
