5.0SMDJ120CA

5.0SMDJ120CA图片1
5.0SMDJ120CA图片2
5.0SMDJ120CA图片3
5.0SMDJ120CA图片4
5.0SMDJ120CA概述

瞬态电压抑制二极管 Transient Voltage Suppression Diodes

193V 夹子 26A Ipp TVS - 表面贴装型 DO-214AB(SMCJ)


得捷:
TVS DIODE 120VWM 193VC DO214AB


立创商城:
Vrwm:120V 5kW


艾睿:
This 5.0SMDJ120CA TVS diode from Littelfuse is a must-have if your electronic equipment may be exposed to overvoltage conditions. Its maximum leakage current is 5 μA. Its peak pulse power dissipation is 5000 W. Its test current is 1 mA. This device&s;s maximum clamping voltage is 193 V and minimum breakdown voltage is 133 V. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 150 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment.


5.0SMDJ120CA中文资料参数规格
技术参数

钳位电压 193 V

测试电流 1 mA

脉冲峰值功率 5000 W

最小反向击穿电压 133 V

工作温度Max 150 ℃

工作温度Min -65 ℃

工作结温 -65℃ ~ 150℃

封装参数

安装方式 Surface Mount

引脚数 2

封装 DO-214AB-2

外形尺寸

封装 DO-214AB-2

物理参数

工作温度 -55℃ ~ 150℃ TJ

其他

产品生命周期 Active

包装方式 Tape & Reel TR

制造应用 电信, 通用

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

5.0SMDJ120CA引脚图与封装图
5.0SMDJ120CA引脚图

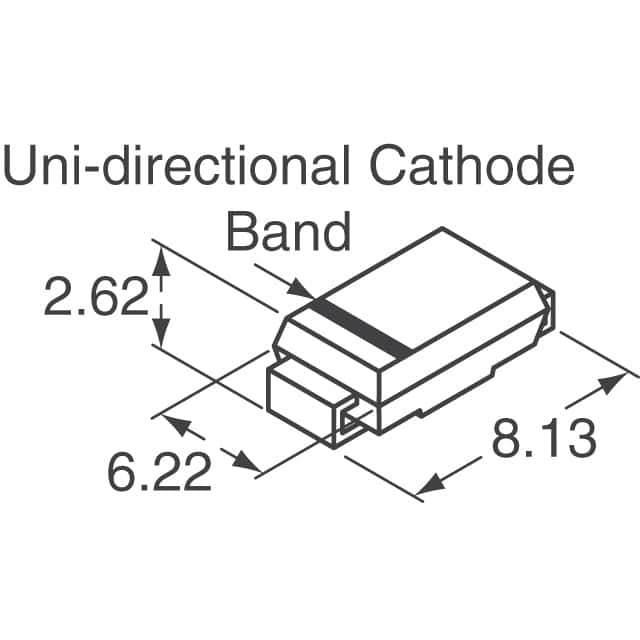

5.0SMDJ120CA封装图
5.0SMDJ120CA封装焊盘图
