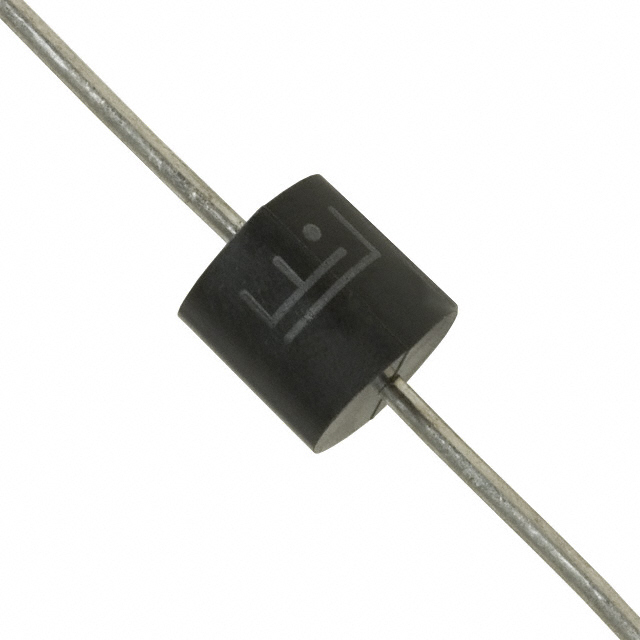

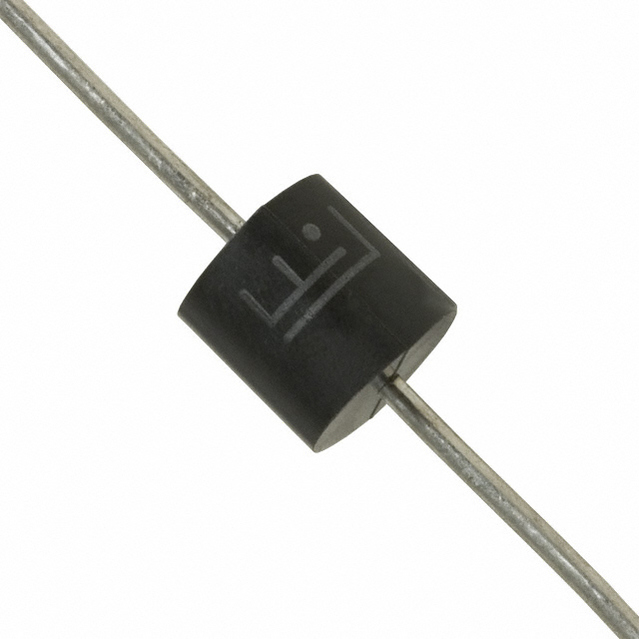

硅雪崩二极管 - 5000瓦的轴向引线型瞬态电压抑制器 Silicon Avalanche Diodes - 5000 Watt Axial Leaded Transient Voltage Suppressor
82.4V 夹子 61.9A Ipp TVS - 通孔 P600
得捷:
TVS DIODE 51VWM 82.4VC P600
艾睿:
Protect users and systems from overvoltage conditions by equipping your electronic equipment with Littelfuse&s;s 5KP51A TVS diode. Its test current is 5 mA. Its maximum leakage current is 2 μA. This device&s;s maximum clamping voltage is 82.4 V and minimum breakdown voltage is 56.7 V. Its peak pulse power dissipation is 5000 W. This TVS diode has an operating temperature range of -55 °C to 175 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively.
Newark:
# LITTELFUSE 5KP51A TVS Diode, 5KP Series, Unidirectional, 51 V, 82.4 V, P600, 2 Pins
额定电压DC 51.0 V
额定功率 5.00 kW
耗散功率 5 kW
钳位电压 82.4 V
测试电流 5 mA
最大反向击穿电压 62.7 V
脉冲峰值功率 5000 W
最小反向击穿电压 56.7 V
工作温度Max 175 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 175℃
安装方式 Through Hole
引脚数 2
封装 P-600
长度 9.1 mm
直径 9.10 mm
封装 P-600
工作温度 -55℃ ~ 175℃ TJ
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
