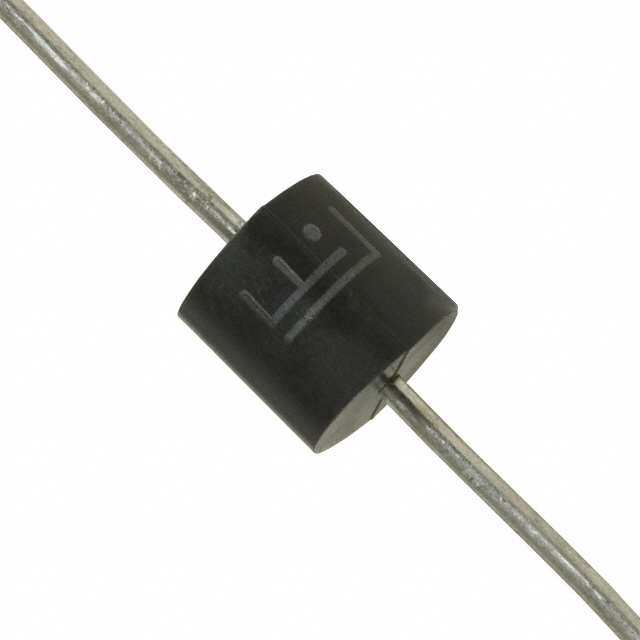

硅雪崩二极管 - 5000瓦的轴向引线型瞬态电压抑制器 Silicon Avalanche Diodes - 5000 Watt Axial Leaded Transient Voltage Suppressor
103V 夹子 49.5A Ipp TVS - 通孔 P600
得捷:
TVS DIODE 64VWM 103VC P600
立创商城:
Vrwm:64V 5kW
贸泽:
ESD Suppressors / TVS Diodes 64Vso 50VAC 49A
艾睿:
This 5KP64A TVS diode from Littelfuse is a must-have if your electronic equipment may be exposed to overvoltage conditions. Its test current is 5 mA. Its maximum leakage current is 2 μA. This device&s;s maximum clamping voltage is 103 V and minimum breakdown voltage is 71.1 V. Its peak pulse power dissipation is 5000 W. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 175 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery.
Chip1Stop:
Diode TVS Single Uni-Dir 64V 5KW 2-Pin Case P600 T/R
Verical:
TVS Diode Single Uni-Dir 64V 5KW 2-Pin Case P-600 T/R
Newark:
# LITTELFUSE 5KP64A TVS Diode, 5KP Series, Unidirectional, 64 V, 103 V, P600, 2 Pins
额定电压DC 64.0 V
额定功率 5.00 kW
击穿电压 71.1 V
电路数 1
耗散功率 5 kW
钳位电压 103 V
测试电流 5 mA
最大反向击穿电压 78.6 V
脉冲峰值功率 5000 W
最小反向击穿电压 71.1 V
击穿电压 71.1 V
工作温度Max 175 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 175℃
安装方式 Through Hole
引脚数 2
封装 P-600
长度 9.1 mm
直径 9.10 mm
封装 P-600
工作温度 -55℃ ~ 175℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
