5KP24CA-B

瞬态电压抑制二极管 Transient Voltage Suppression Diodes

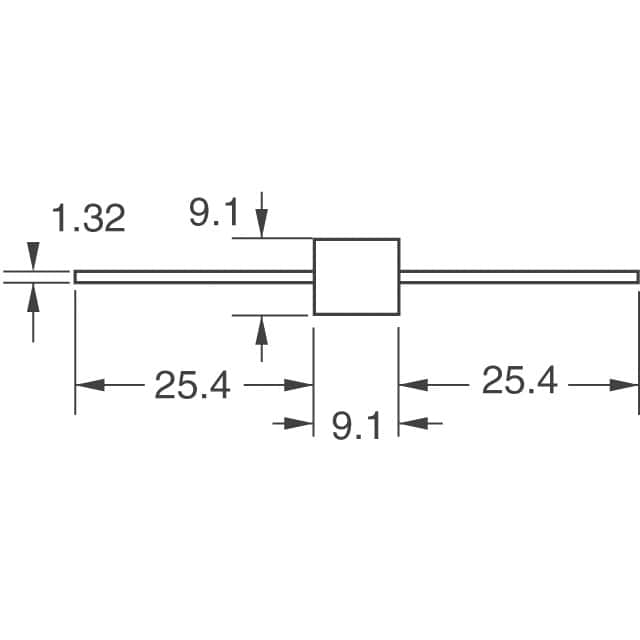

38.9V 夹子 131.1A Ipp TVS - 通孔 P600

得捷:
TVS DIODE 24VWM 38.9VC P600

立创商城:
Vrwm:24V 5kW

艾睿:
Prevent your circuits from experiencing malfunctions from electrostatic discharge with this 5KP24CA-B TVS diode from Littelfuse. This device&s;s maximum clamping voltage is 38.9 V and minimum breakdown voltage is 26.7 V. Its peak pulse power dissipation is 5000 W. Its maximum leakage current is 2 μA. Its test current is 5 mA. This TVS diode has an operating temperature range of -55 °C to 175 °C. This product comes packaged in bulk, so the parts will be stored loosely.

Verical:
Diode TVS Single Bi-Dir 24V 5KW 2-Pin Case P-600 Bulk
