LITTELFUSE 5KP15CA 二极管, TVS, 5KW, 15V, P600, 整卷
24.4V 夹子 209A Ipp TVS - 通孔 P600
得捷:
TVS DIODE 15VWM 24.4VC P600
立创商城:
Vrwm:15V 5kW
e络盟:
LITTELFUSE 5KP15CA 二极管, TVS, 5KW, 15V, P600, 整卷
艾睿:
This 5KP15CA TVS diode from Littelfuse protects against overvoltages. This device&s;s maximum clamping voltage is 24.4 V and minimum breakdown voltage is 16.7 V. Its test current is 5 mA. Its maximum leakage current is 2 μA. Its peak pulse power dissipation is 5000 W. This TVS diode has an operating temperature range of -55 °C to 175 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery.
Chip1Stop:
Diode TVS Single Bi-Dir 15V 5KW 2-Pin Case P-600 T/R
Verical:
TVS Diode Single Bi-Dir 15V 5KW 2-Pin Case P-600 T/R
Newark:
# LITTELFUSE 5KP15CA TVS Diode, 5KP Series, Bidirectional, 15 V, 24.4 V, P600, 2 Pins
额定电压DC 15.0 V
额定功率 5.00 kW
击穿电压 16.7 V
电路数 1
针脚数 2
耗散功率 5000 W
钳位电压 24.4 V
测试电流 5 mA
最大反向击穿电压 18.5 V
脉冲峰值功率 5000 W
最小反向击穿电压 16.7 V
击穿电压 16.7 V
工作温度Max 175 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 175℃
安装方式 Through Hole
引脚数 2

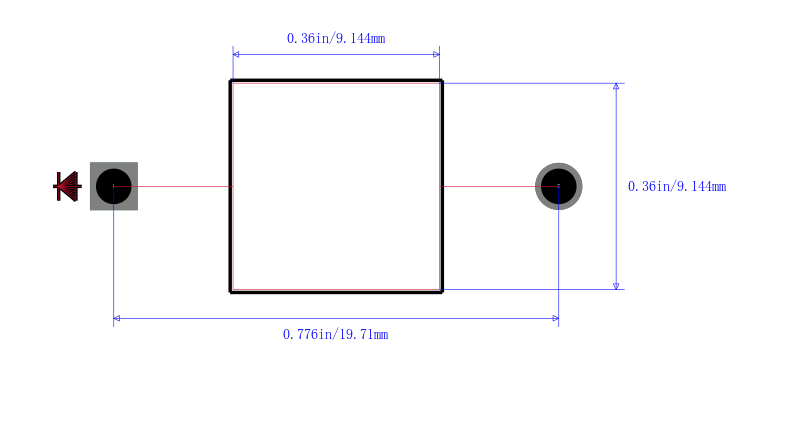

封装 P-600
长度 9.1 mm
直径 9.10 mm
封装 P-600
工作温度 -55℃ ~ 175℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2014/12/17
