5KP系列 146V 5kW 通孔 双向 瞬态电压抑制二极管 P-600
146V 夹子 34.9A Ipp TVS - 通孔 P600
得捷:
TVS DIODE 90VWM 146VC P600
贸泽:
ESD 抑制器/TVS 二极管 90Vso 70VAC 34A
艾睿:
Get protected with this 5KP90CA TVS diode manufactured from Littelfuse. Its peak pulse power dissipation is 5000 W. Its maximum leakage current is 2 μA. Its test current is 5 mA. This device&s;s maximum clamping voltage is 146 V and minimum breakdown voltage is 100 V. This TVS diode has an operating temperature range of -55 °C to 175 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery.
Chip1Stop:
Diode TVS Single Bi-Dir 90V 5KW 2-Pin Case P600 T/R
TME:
Diode: transil; 5kW; 105.5V; 34.9A; bidirectional; ±5%; P600
Verical:
Diode TVS Single Bi-Dir 90V 5KW 2-Pin Case P-600 T/R
Newark:
# LITTELFUSE 5KP90CA TVS Diode, 5KP Series, Bidirectional, 90 V, 146 V, P600, 2 Pins
工作电压 90 V
击穿电压 100 V
电路数 1
耗散功率 5000 W
钳位电压 146 V
测试电流 5 mA
最大反向击穿电压 111 V
脉冲峰值功率 5000 W
最小反向击穿电压 100 V
击穿电压 100 V
工作温度Max 175 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 175℃
安装方式 Through Hole
引脚数 2

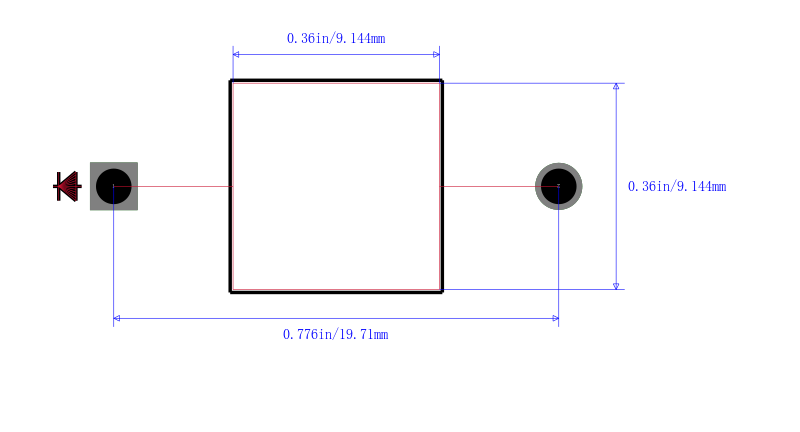

封装 P-600
长度 9.1 mm
直径 9.10 mm
封装 P-600
工作温度 -55℃ ~ 175℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
