5KP 系列 5 kW 220 V 双向 轴向 TVS 二极管 - P600
371.1V Clamp 13.7A Ipp Tvs Diode Through Hole P600
得捷:
TVS DIODE 220VWM 371.1VC P600
立创商城:
Vrwm:220V 5kW
艾睿:
This 5KP220CA TVS diode developed by Littelfuse can help protect your expensive equipment and electronics. This device&s;s maximum clamping voltage is 371.1 V and minimum breakdown voltage is 244 V. Its test current is 5 mA. Its peak pulse power dissipation is 5000 W. Its maximum leakage current is 2 μA. This TVS diode has an operating temperature range of -55 °C to 175 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery.
Chip1Stop:
Diode TVS Single Bi-Dir 220V 5KW 2-Pin Case P600 T/R
Verical:
Diode TVS Single Bi-Dir 220V 5KW 2-Pin Case P-600 T/R
Newark:
# LITTELFUSE 5KP220CA TVS Diode, 5KP Series, Bidirectional, 220 V, 371.1 V, P600, 2 Pins
额定电压DC 220 V
电容 85 pF
额定功率 5.00 kW
击穿电压 244 V
电路数 1
耗散功率 5 kW
钳位电压 371.1 V
测试电流 5 mA
最大反向击穿电压 270 V
脉冲峰值功率 5000 W
最小反向击穿电压 244 V
击穿电压 244 V
工作温度Max 175 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 175℃
安装方式 Through Hole
引脚数 2

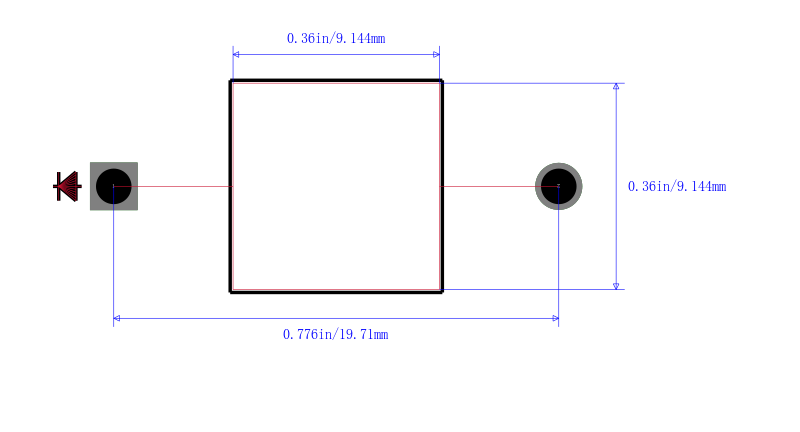

封装 P-600
长度 9.1 mm
直径 9.10 mm
封装 P-600
工作温度 -55℃ ~ 175℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
