LITTELFUSE 5KP130CA 二极管, TVS, 5KW, 130V, P600
209V 夹子 24.4A Ipp TVS - 通孔 P600
得捷:
TVS DIODE 130VWM 209VC P600
立创商城:
Vrwm:130V 5kW
e络盟:
二极管, TVS, 5KW, 130V, P600
艾睿:
Prevent your circuits from experiencing malfunctions from electrostatic discharge with this 5KP130CA TVS diode from Littelfuse. Its peak pulse power dissipation is 5000 W. Its maximum leakage current is 2 μA. This device&s;s maximum clamping voltage is 209 V and minimum breakdown voltage is 144 V. Its test current is 5 mA. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 175 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components.
Chip1Stop:
Diode TVS Single Bi-Dir 130V 5KW 2-Pin Case P-600 T/R
Verical:
Diode TVS Single Bi-Dir 130V 5KW 2-Pin Case P-600 T/R
Newark:
# LITTELFUSE 5KP130CA TVS Diode, 5KP Series, Bidirectional, 130 V, 209 V, P600, 2 Pins
击穿电压 144 V
电路数 1
针脚数 2
耗散功率 5000 W
钳位电压 209 V
测试电流 5 mA
最大反向击穿电压 159 V
脉冲峰值功率 5000 W
最小反向击穿电压 144 V
击穿电压 144 V
工作温度Max 175 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 175℃
安装方式 Through Hole
引脚数 2
封装 P-600

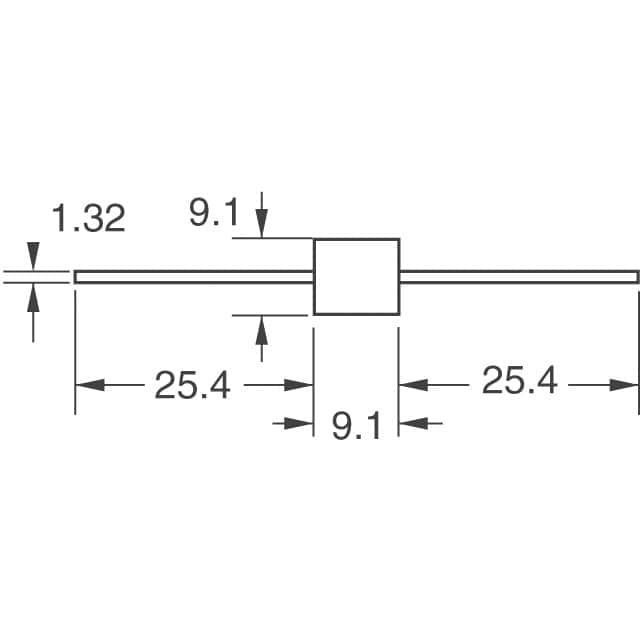

长度 9.1 mm
直径 9.10 mm
封装 P-600
工作温度 -55℃ ~ 175℃ TJ
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2014/12/17
ECCN代码 EAR99
