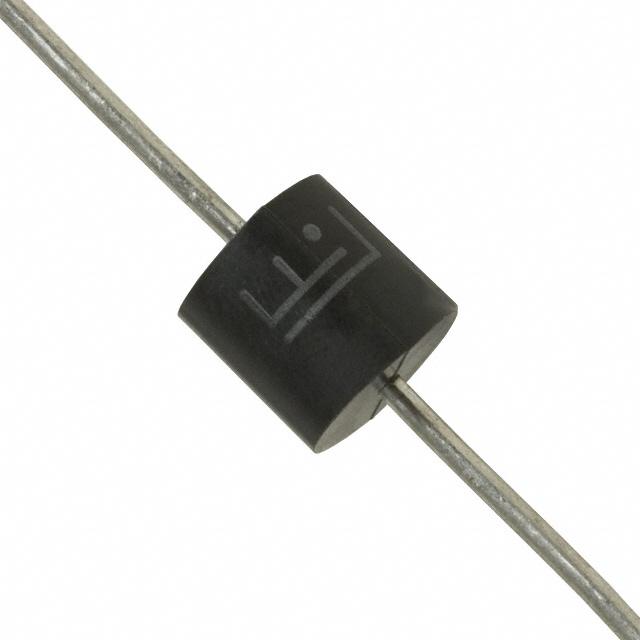

硅雪崩二极管 - 5000瓦的轴向引线型瞬态电压抑制器 Silicon Avalanche Diodes - 5000 Watt Axial Leaded Transient Voltage Suppressor
275V 夹子 18.5A Ipp TVS - 通孔 P600
得捷:
TVS DIODE 170VWM 275VC P600
立创商城:
Vrwm:170V 5kW
艾睿:
Protect users and systems from overvoltage conditions by equipping your electronic equipment with Littelfuse&s;s 5KP170CA TVS diode. Its peak pulse power dissipation is 5000 W. This device&s;s maximum clamping voltage is 275 V and minimum breakdown voltage is 189 V. Its test current is 5 mA. Its maximum leakage current is 2 μA. This TVS diode has an operating temperature range of -55 °C to 175 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively.
Chip1Stop:
Diode TVS Single Bi-Dir 170V 5KW 2-Pin Case P600 T/R
Newark:
# LITTELFUSE 5KP170CA TVS Diode, 5KP Series, Bidirectional, 170 V, 275 V, P600, 2 Pins
额定电压DC 170 V
额定功率 5.00 kW
电路数 1
钳位电压 275 V
测试电流 5 mA
最大反向击穿电压 209 V
脉冲峰值功率 5000 W
最小反向击穿电压 189 V
工作温度Max 175 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 175℃
安装方式 Through Hole
引脚数 2

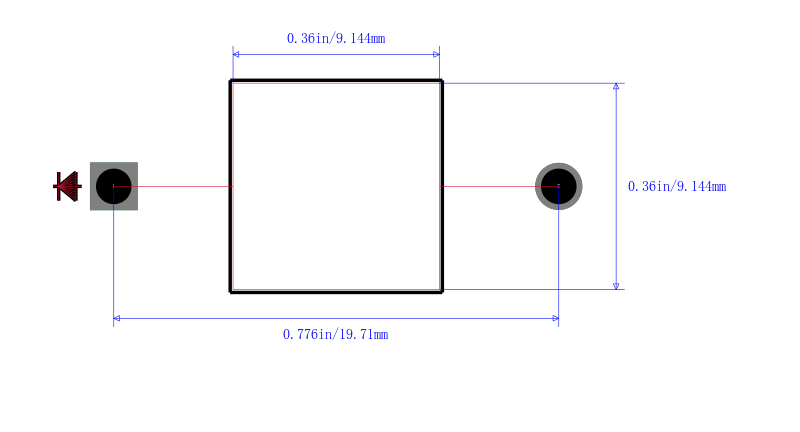

封装 P-600
长度 9.10 mm
直径 9.10 mm
封装 P-600
工作温度 -55℃ ~ 175℃ TJ
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
