58124 SL001

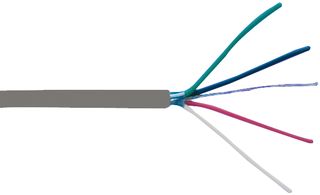

58124 SL001图片1
58124 SL001图片2
58124 SL001概述

ALPHA WIRE 58124 SL001 Multiconductor Shielded Cable, Plenum, Slate, 4Conductor, 20AWG, 1000Ft, 304.8m

Multiconductor cable rated for plenum use is manufactured to higher standards due to the need of the cable to survive harsh conditions should they occur.


得捷:
CABLE 4COND 20AWG SHLD 1000"


贸泽:
Multi-Conductor Cables 20AWG 4C SHIELD 1000ft SPOOL SLATE


Allied Electronics:
Cable, Shielded; 4; 20 AWG; 7 x 28; 0.160 in.; 0.014 in.; Plenum-Rated PVC


Newark:
# ALPHA WIRE  58124 SL001  Multiconductor Shielded Cable, Plenum, Slate, 4 Conductor, 20 AWG, 1000 ft, 304.8 m


58124 SL001中文资料参数规格
技术参数

线规 20 AWG

额定电压DC 150 V

屏蔽 Yes

芯数 4

工作温度Max 60 ℃

工作温度Min -20 ℃

额定电压 150 V

外形尺寸

长度 304.8 m

物理参数

颜色 Slate

绝缘材质 PVC

工作温度 -5℃ ~ 75℃

导体材质 Bare Copper

外壳材质 PVC

其他

产品生命周期 Active

包装方式 Coil

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC版本 2015/12/17

数据手册

在线购买58124 SL001
型号: 58124 SL001
制造商: Alpha Wire
描述:ALPHA WIRE 58124 SL001 Multiconductor Shielded Cable, Plenum, Slate, 4Conductor, 20AWG, 1000Ft, 304.8m
