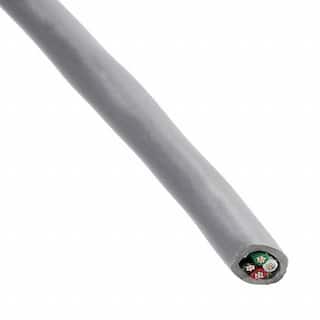

多芯电缆 20AWG 4C SHIELD 500ft SPOOL SLATE
Xtra-Guard® 1 Extra-Premium Grade PVC Jacket Foil Shield Multiconductor, 20 AWG
** Conductor:** Stranded tin coated copper. ** Conductor Styles:** 24 and 22 AWG — UL 1061, CSA AWM SR-PVC; 20, 18 and 16 AWG — UL 1007, CSA AWM PVC. ** Insulation:** Color coded, 80°C premium polyvinylchloride. ** Shield:** Aluminum/polyester 25% overlap, typical, foil facing in plus stranded, tinned copper drain wire equal in size to insulated conductors of cable. Nylon rip cord for ease of jacket stripping. ** Cable Styles:** UL type CM, AWM 2464, CSA PCC FT4. ** Operating Temperature Range:** –20°C to +80°C AWM 75°C — CM. ** Jacket:** Premium polyvinylchloride in gray or black; stocked in gray.
** Choose XTRA
* ** GUARD® ** 1 For**
* Unsurpassed Flame and Moisture Resistance
* Fast, Easy Stripping of Insulation and Jacket
* UL Recognized and UL Listed
* Flexible Cable Routing Requirements
** XTRA
* ** GUARD® ** 1 Applications**
* EIA RS 232C Interface
* High Technology Applications in Controlled Environments
* Point-Of-Sale Equipment
* Computer Peripherals
* Industrial Process Controls
