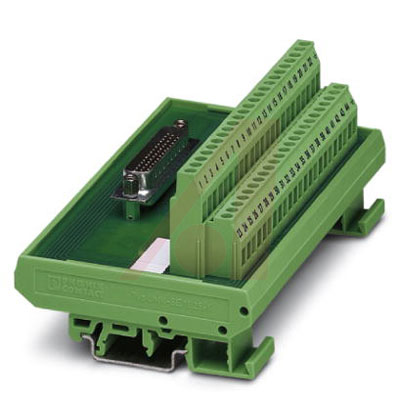

5528383图片1
5528383图片2
5528383图片3
5528383概述

Conn VARIOFACE Module PL 15POS

In order to perform at an optimum level, cables and wires for high-reliability applications should be fitted with this specially engineered varioface module connector accessory from Contact. This PL connector has 15 PL contacts. It has a plug type gender.


得捷:
INTERFACE MOD DSUB MALE 15POS


贸泽:
Terminal Block Interface Modules FLKM H DSUB 15/M


艾睿:
Conn VARIOFACE Module PL 15 POS


Allied Electronics:
MODULE POS. 15, WIDTH: 57 MM


5528383中文资料参数规格
技术参数

触点数 15

线规 12AWG ~ 24AWG

额定电流 1 A

针脚数 15

触点额定电流 1 A

工作温度Max 50 ℃

工作温度Min -20 ℃

额定电压Max 125 V

额定电压 125 V

封装参数

安装方式 DIN Rail, Screw

外形尺寸

长度 57.00 mm

物理参数

颜色 Green

工作温度 -20℃ ~ 50℃

其他

产品生命周期 Obsolete

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买5528383
型号: 5528383
描述:Conn VARIOFACE Module PL 15POS
