5.0SMDJ90A

瞬态电压抑制二极管 Transient Voltage Suppression Diodes

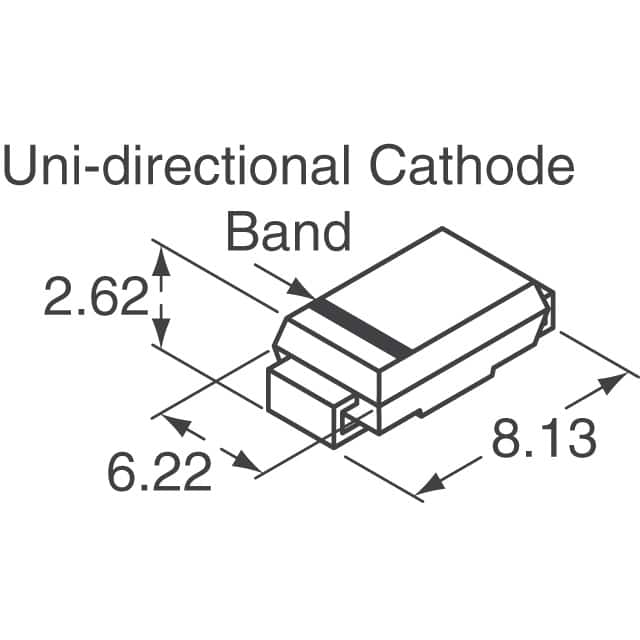

146V 夹子 34.3A Ipp TVS - 表面贴装型 DO-214AB（SMCJ）

得捷:
TVS DIODE 90VWM 146VC DO214AB

立创商城:
单向 Vrwm:90V 5kW

e络盟:
TVS二极管, 5.0SMDJ Series, 单向, 90 V, 146 V, DO-214AB SMC, 2 引脚

艾睿:
Protect vulnerable electronic circuits against overvoltages by equipping your device with this 5.0SMDJ90A TVS diode from Littelfuse. Its test current is 1 mA. This device&s;s maximum clamping voltage is 146 V and minimum breakdown voltage is 100 V. Its peak pulse power dissipation is 5000 W. Its maximum leakage current is 5 μA. This TVS diode has an operating temperature range of -55 °C to 150 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components.

Chip1Stop:
Diode TVS Single Uni-Dir 90V 5KW 2-Pin DO-214AB T/R
