瞬态电压抑制二极管 Transient Voltage Suppression Diodes
371.1V Clamp 13.7A Ipp Tvs Diode Through Hole P600
立创商城:
Vrwm:220V 5kW
得捷:
TVS DIODE 220VWM 371.1VC P600
艾睿:
Get protected with this 5KP220A TVS diode manufactured from Littelfuse. Its peak pulse power dissipation is 5000 W. This device&s;s maximum clamping voltage is 371.1 V and minimum breakdown voltage is 244 V. Its maximum leakage current is 2 μA. Its test current is 5 mA. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 175 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components.
Chip1Stop:
Diode TVS Single Uni-Dir 220V 5KW 2-Pin Case P600 T/R
额定电压DC 220 V
工作电压 220 V
额定功率 5.00 kW
击穿电压 244 V
电路数 1
钳位电压 371.1 V
最大反向电压（Vrrm） 220V
测试电流 5 mA
脉冲峰值功率 5000 W
最小反向击穿电压 244 V
工作温度Max 175 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 175℃
安装方式 Through Hole
引脚数 2

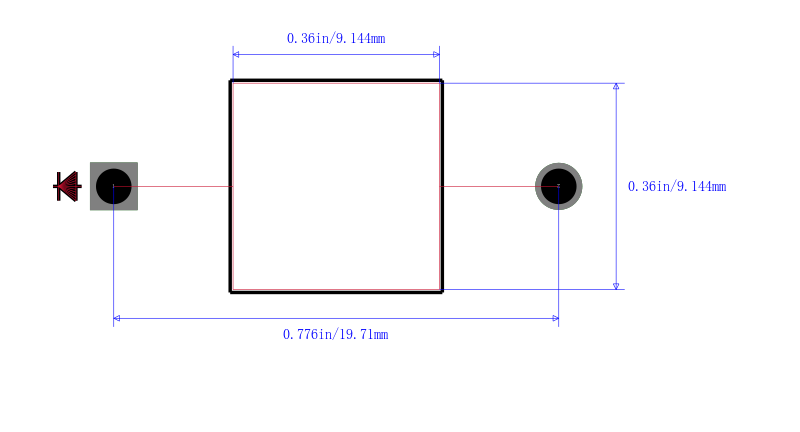

封装 P600-2
长度 9.1 mm
直径 9.10 mm
封装 P600-2
工作温度 -55℃ ~ 175℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
