59070-010

59070-010图片1
59070-010图片2
59070-010图片3
59070-010图片4
59070-010图片5
59070-010概述

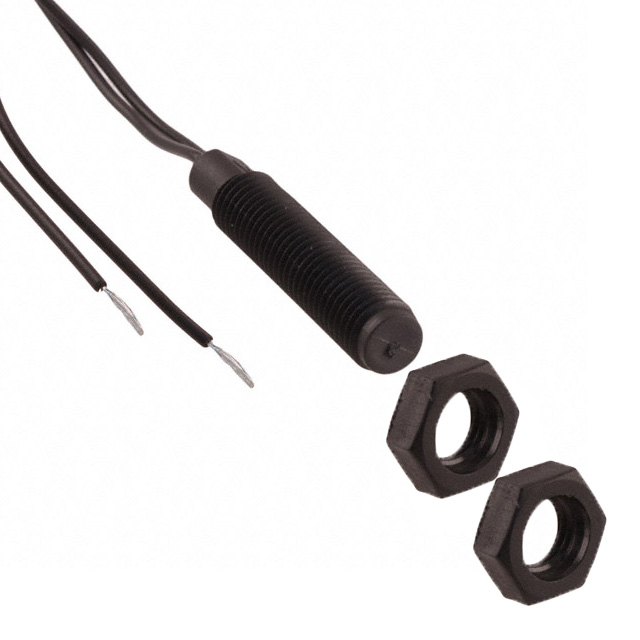

59070 2 部分 100 mm 电缆 磁动 螺纹 桶形 执行器/ 传感器

Home security systems and motion detection circuits would be incomplete without the use of "s proximity sensor. This part has a temperature range of -40 °C to 105 °C.


艾睿:
Home security systems and motion detection circuits would be incomplete without the use of Littelfuse&s;s 59070-010 proximity sensor. This part has a temperature range of -40 °C to 105 °C.


Verical:
Proximity Sensor Magnetic 2-Pin Bulk


59070-010中文资料参数规格
技术参数

额定电压DC 200 V

额定电流 500 mA

绝缘电阻 100 GΩ

电容 0.3 pF

触点类型 SPST-NO

供电电流 500 mA

载流 1.20 A

工作温度Max 105 ℃

工作温度Min -40 ℃

封装参数

安装方式 Panel

引脚数 2

封装 Cylinder, Threaded

外形尺寸

长度 38.1 mm

封装 Cylinder, Threaded

物理参数

绝缘材质 PVC

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

海关信息

ECCN代码 EAR99

数据手册

在线购买59070-010
型号: 59070-010
描述:59070 2 部分 100 mm 电缆 磁动 螺纹 桶形 执行器/ 传感器
