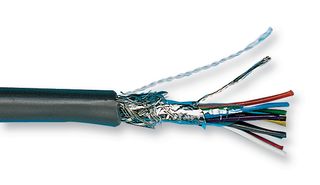

ALPHA WIRE 5562C SL002 Multiconductor Unshielded Cable, Xtra Guardr 1, 12, 20AWG, 0.56mm , 7 x 0.32mm, 500Ft, 152.4m
Xtra-Guard® 1 Extra-Premium Grade PVC Jacket Foil Shielded Multiconductor, 20 AWG
** Conductor: ** Stranded tinned copper. ** Insulation:** Color-coded premium PVC. ** Shielding:** Aluminum/polyester foil facing in with stranded tinned copper drain wire equal in size to insulated conductors of the cable. ** Voltage Rating:** 300 V. Nylon rip cord for ease of jacket stripping. ** Cable Style:** UL CM, AWM Style 2343, CSA PCC FT4, passes UL VW1 and CSA FT4 flame tests. ** Operating Temperature:** –20°C to 85°C — AWM, –20°C to 75°C — CM. ** Jacket:** Premium polyvinylchloride in gray or black; stocked in gray.
** Choose XTRA
* ** GUARD® ** 1 for:**
* Extra-Premium Grade PVC Jacket for Extended Cable Life
* Unsurpassed Flame and Moisture Resistance
* Flexible Cable Routing Requirements
* Fast Easy Stripping of Insulation and Jacket
* UL Recognized and UL Listed
** XTRA
* ** GUARD® ** 1 Applications**
* EIA Rs 232C Interface 24, 22 AWG
* High Technology Applications in Controlled Environments
* Medical Electronics
* Point-Of-Sale Equipment
* Computer Peripherals
* Industrial Process Controls
