5016451220

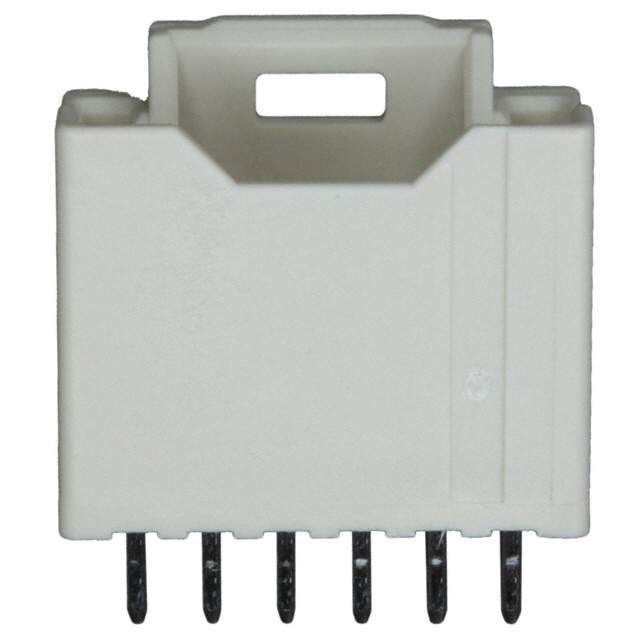

2.00毫米（ .079 “ ）间距iGrid游戏线对板头，双排，垂直，与PCB定位器 2.00mm .079" Pitch iGrid Wire-to-Board Header, Dual Row, Vertical, with PCB Locator

Connector Header Through Hole 12 position 0.079" 2.00mm

欧时:
2.0 W/B Dual Grid Plug HsgAssy12Ckt

得捷:
CONN HEADER VERT 12POS 2MM

立创商城:
2mm 2x6P

艾睿:
Protect your printed circuit boards from accidental damages with Molex&s;s shrouded 5016451220 header connector. This HDR connector&s;s 12 contacts that are made out of brass and plated with tin over copper. It has a maximum voltage rating of 250 VDC|250VAC. It has a straight body orientation. It has a header type gender. This is a 2-row connector. Its pitch is 2 mm. This device has a maximum current rating of 2 A/contact. This component comes in tray packaging, useful for fast picking and placing of your parts. This product is 14 mm long, 12 mm tall and 8.2 mm deep. This connector has an operating temperature of -25 to 85 °C. It uses the solder termination method. 5016451220 is housed in natural nylon 6/6.

Verical:
Conn Shrouded Header 4 Sides HDR 12 POS 2mm Solder ST Thru-Hole iGrid™ Tray
