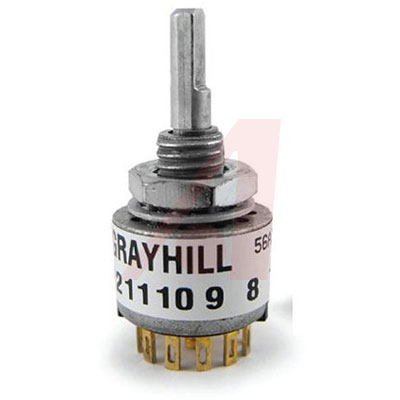

2 - 6Positions 30deg Rotary Switch, 115V ac, 30V dc, 200mA, Shaft
**56 Series Single Deck Rotary Switches**
The 56 Series of single deck rotary switches from are rugged in design to ensure switch operation for the lifetime of your equipment. The Grayhill 56 series of rotary switch have a variety of circuit options available.
艾睿:
Need to expand design options by giving more than two positions for your switch? This 56SP30-01-2-04N rotary switch from Grayhill is a must-have! It has a DP4T configuration. This device has a maximum current rating of 0.2. The 56SP30-01-2-04N rotary limit switch has a PC pin termination style. The maximum AC voltage rating is 115 VAC and the maximum DC voltage rating is 30 VDC. This product is 12.7 mm long, 25.46 mm tall and 12.7 mm deep.
Allied Electronics:
2 - 6 positions 30deg Rotary Switch, 115 V ac, 30 V dc, 200 mA, Shaft
安富利:
Switch Rotary DP4T 4 Flatted Shaft PC Pins 0.2A 115VAC 30VDC
Chip1Stop:
Switch Rotary DP4T 4 Flatted Shaft PC Pins 0.2A 115VAC 30VDC
Verical:
Switch Rotary DP4T 4 Flatted Shaft PC Pins 0.2A 115VAC 30VDC
Electro Sonic:
Switch Rotary DP4T 4 Flatted Shaft PC Pins 0.2A 115VAC 30VDC
