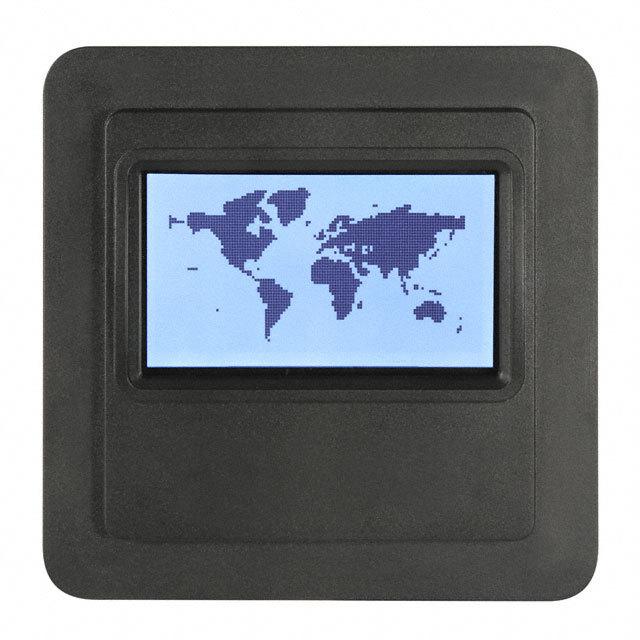

STORM INTERFACE 5100-0103 液晶屏模块, 8 X 20, 透反射型
A toughened data display unit with integral USB 2.0 interface featuring an extended operational temperature range of –20°C to +70°C. This robust, monochrome display is ideal for use in exposed or industrial environments. Bright white transflective display technology is securely encased within a sealed and impact resistant bezel.
The bezel features a hard coated UV and scratch resistant, polycarbonate window. Character display can be either 20 character × 4 lines or 20 character × 8 lines depending on the font configuration.
Easily installed into any control panel or equipment enclosure providing a ‘ready-to-use’ display solution for a wide range of indoor or outdoor applications.
5100 Series Toughened Data Display can be configured by the Configuration Utility Software via the Application Programming Interface for Windows API. These software tools are available free of charge and can be downloaded from www.storm-interface.com. Please note: Registration is required for download.
**Features:**
* Rated to IP65
* 4 or 8 Lines × 20 Character Data Display
* Extended Operational Temeperature Range –20°C to +70°C
* Impact Resistant Bezel with Hard Coated UV and Scratch Resistant Polycarbonate Window
* Display Connects to the Host System via a Single USB Cable with a USB Mini-B Connector Cable Supplied Separately
* Programmable USB Display Controller and System Interface
* Resistant to Petrochemicals, Detergents and Most commonly Used Non-Abrasive Cleaning Agents
* The Display Enumerates as an HID Compliant Device
* Dimensions: H = 102 mm, W = 102 mm, D = 32 mm
