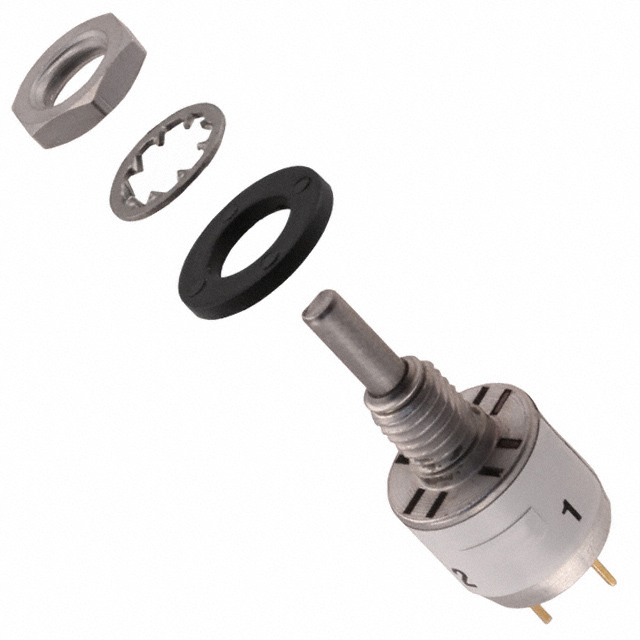

GRAYHILL 50DP90-01-1-AJN Rotary Switch, 4Position, Non Illuminated, 50 Series, 90°, 150mA, 200mA

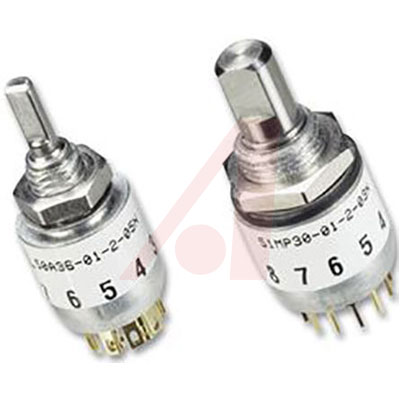

**50 & 51 Series Single Deck Rotary Switches**
The 50 & 51 Series of single deck rotary switches from are rugged in design to ensure switch operation for the lifetime of your equipment. This series of rotary switch offer a variety of circuit options and feature positive shaft grounding to ensure EMI/RFI shielding.
立创商城:
50DP90-01-1-AJN
艾睿:
Switch Rotary SP Flatted Shaft PC Pins 0.2A 220VAC 28VDC
Allied Electronics:
Switch, Rotary, Adj Stop, PC Mount, 90 Degree, 1 Deck, 1 Pole, Non-Shorting
安富利:
Switch Rotary SP Flatted Shaft PC Pins 0.2A 220VAC 28VDC
Chip1Stop:
Switch Rotary SP Flatted Shaft PC Pins 0.2A 220VAC 28VDC
Verical:
Switch Rotary SP4T 4 Flatted Shaft PC Pins 0.2A 220VAC 28VDC
Newark:
# GRAYHILL 50DP90-01-1-AJN Rotary Switch, 4 Position, Non Illuminated, 50 Series, 90 °, 150 mA, 200 mA
MASTER:
Switch Rotary SP Flatted Shaft PC Pins 0.2A 220VAC 28VDC
Electro Sonic:
Switch Rotary SP Flatted Shaft PC Pins 0.2A 220VAC 28VDC
触点电镀 Silver
方向 Vertical
针脚数 4 max
额定电流Max 0.2A @28VDC
额定电压 28 VDC
接触电阻Max 10 mΩ
安装方式 Through Hole
封装 200
长度 12.7 mm
宽度 12.7 mm
高度 29.52 mm
直径 12.7 mm
封装 200
触点材质 Metal Alloy
产品生命周期 Not Recommended for New Design
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8536509020
