559-1301-007F概述

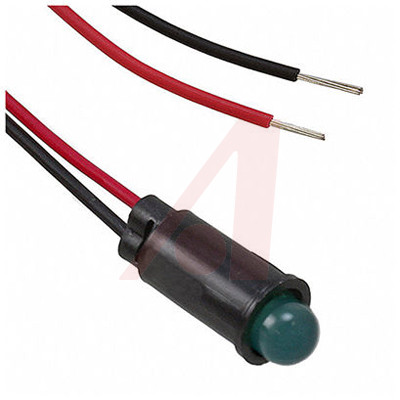

DIALIGHT  559-1301-007F  发光二极管面板指示灯, 绿色, 5MM, 1.8V

"s 559 series LED panel mount indicator is available with a variety of LEDs including AlInGaP and InGaN technology for high brightness applications, bicolor and integral resistors. These indicators are designed for a variety of applications such as fan tray assemblies, datacenter infrastructure servers and storage, next-gen wireless infrastructure, electronic test & measurement instruments, communications testing equipment, process controls, automation, medical equipment, and handheld devices.

559-1301-007F中文资料参数规格
技术参数

额定电压DC 2.20 V

工作电压 1.8 VDC

额定电流 2 mA

正向电压 1.8 V

波长 565 nm

发光强度 1.8 mcd

视角 50°

峰值波长 565 nm

正向电流 2 mA

正向电流Max 7 mA

工作温度Max 100 ℃

工作温度Min -55 ℃

额定电压 1.8 VDC

电源电压 1.8 VDC

封装参数

引脚数 2

物理参数

外壳颜色 Black

颜色 Green

外观颜色 Green

其他

产品生命周期 Active

包装方式 Each

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

在线购买559-1301-007F
型号: 559-1301-007F
制造商: Dialight
描述:DIALIGHT  559-1301-007F  发光二极管面板指示灯, 绿色, 5MM, 1.8V
