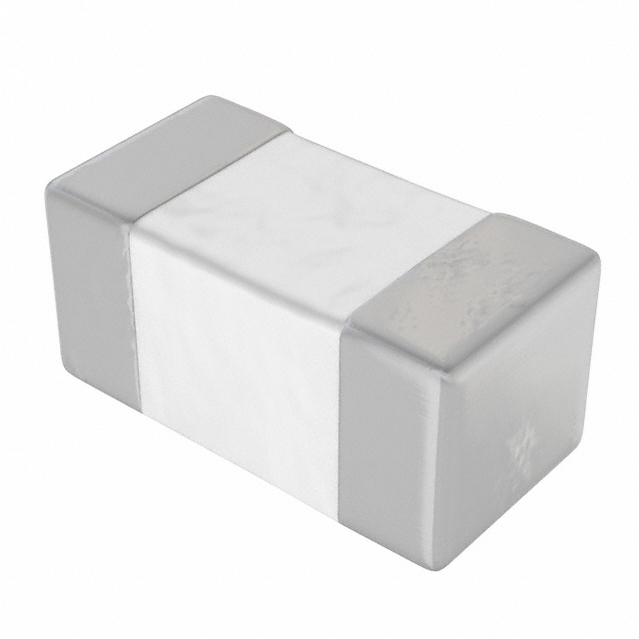

JOHANSON TECHNOLOGY 500R07S120GV4T 电容, 高Q值, 0402, 50V, 12pF
The Multi Layer MLCC capacitor model offers a capacitance of 12 pF with 2 % tolerance. Voltage rating is 50 V. The 500R07S120GV4T is available in a 0402 package.
得捷:
CAP CER 12PF 50V C0G/NP0 0402
立创商城:
12pF ±2% 50V
贸泽:
Multilayer Ceramic Capacitors MLCC - SMD/SMT 50volts 12pF 2%
e络盟:
射频电容, 高Q, 12 pF, 50 V, S系列, ± 2%, 125 °C, 0402 [1005公制]
艾睿:
This 500R07S120GV4T multilayer ceramic capacitor from Johanson can be used in multiple applications and for various purposes. It can withstand a voltage of 50 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. Its capacitance value is 12pF. This product is 1.02 mm long, 0.51 mm tall and 0.51 mm deep. It has a tolerance of 2%.
Chip1Stop:
Cap Ceramic 12pF 50V C0G 2% SMD 0402 125C Paper T/R
Verical:
Cap Ceramic 12pF 50V C0G 2% Pad SMD 0402 125C Ultra Low ESR T/R
Newark:
# JOHANSON TECHNOLOGY 500R07S120GV4T Capacitor, RF, High-Q, 12 pF, 50 V, S-Series, ± 2%, 125 °C
RfMW:
Hi-Q MLCC 0402,12pF,±2%
额定电压DC 50 V
电容 12 pF
容差 ±2 %
电介质特性 C0G/NP0
产品系列 High-Q
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 50 V
安装方式 Surface Mount
引脚数 2
封装公制 1005
封装 0402
长度 1.02 mm
宽度 0.51 mm
高度 0.51 mm
封装公制 1005
封装 0402
厚度 0.51 mm
材质 C0G/-55℃~+125℃
介质材料 Ceramic
工作温度 -55℃ ~ 125℃
产品生命周期 Unknown
包装方式 Tape & Reel TR
最小包装 10000
制造应用 RF,微波,高频
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
