高速差动线路接收器 HIGH-SPEED DIFFERENTIAL LINE RECEIVERS

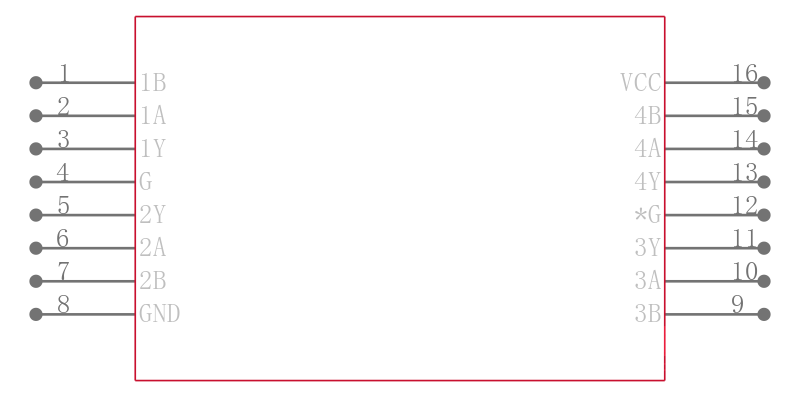

DESCRIPON
The SN55LVDS32, SN65LVDS32, SN65LVDS3486, and SN65LVDS9637 are differential line receivers
that implement the electrical characteristics of low-voltage differential signaling LVDS. This
signaling technique lowers the output voltage levels of 5-V differential standard levels such as
EIA/TIA-422B to reduce the power, increase the switching speeds, and allow operation with a 3.3-V supply rail. Any of the four differential receivers provides a valid logical output state with a ±100-mV differential input voltage within the input common-mode voltage range. The input
common-mode voltage range allows 1 V of ground potential difference between two LVDS nodes.
FEATURES
• Meet or Exceed the Requirements of ANSI TIA/EIA-644 Standard
• Operate With a Single 3.3-V Supply
• Designed for Signaling Rates of up to 100 Mbps See Table 1
• Differential Input Thresholds ±100 mV Max
• Typical Propagation Delay Time of 2.1 ns
• Power Dissipation 60 mW Typical Per Receiver at Maximum Data Rate
• Bus-Terminal ESD Protection Exceeds 8 kV
• Low-Voltage TTL LVTTL Logic Output Levels
• Pin Compatible With AM26LS32, MC3486, and μA9637
• Open-Circuit Fail-Safe
• Cold Sparing for Space and High Reliability Applications Requiring Redundancy
