CMOS双8位缓冲乘法DAC CMOS Dual 8-Bit Buffered Multiplying DAC
Product Details

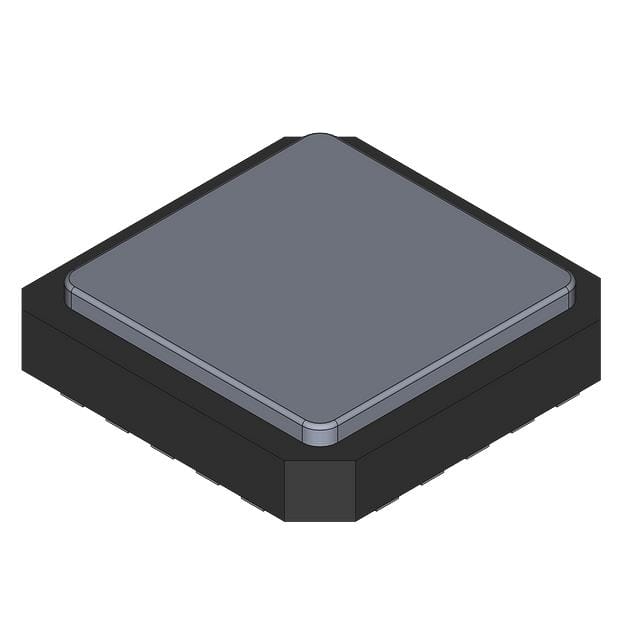

The AD7528 is a monolithic dual 8-bit digital/analog converter featuring excellent DAC-to-DAC matching. It is available in skinny 0.3" wide 20-pin DIP"s and in 20-terminal surface mount packages.
Separate on-chip latches are provided for each DAC to allow easy microprocessor interface.
Data is transferred into either of the two DAC data latches via a common 8-bit TTL/CMOS compatible input port. Control input DAC A/DAC B determines which DAC is to be loaded. The AD7528"s load cycle is similar to the write cycle of a random access memory and the device is bus compatible with most 8-bit microprocessors, including 6800, 8080, 8085, Z80.
The device operates from a +5V to +15V power supply, dissipating only 20mW of power.
Both DAC"s offer excellent four quadrant multiplication characteristics with a seperate reference input and feedback resistor for each DAC.
**APPLICATIONS**
Digital Control of:
- .
- Gain/Attenuation
- .
- Filter Parameters
- .
- Stereo Audio Circuits
- .
- X-Y Graphics
### Features and Benefits
- .
- On-Chip Latches for Both DACs
- .
- +5 V to +15 V Operation
- .
- DACs Matched to 1%
- .
- Four Quadrant Multiplication
- .
- TTL/CMOS Compatible
- .
- Latch Free Protection Schottkys not Required
