5555164-1

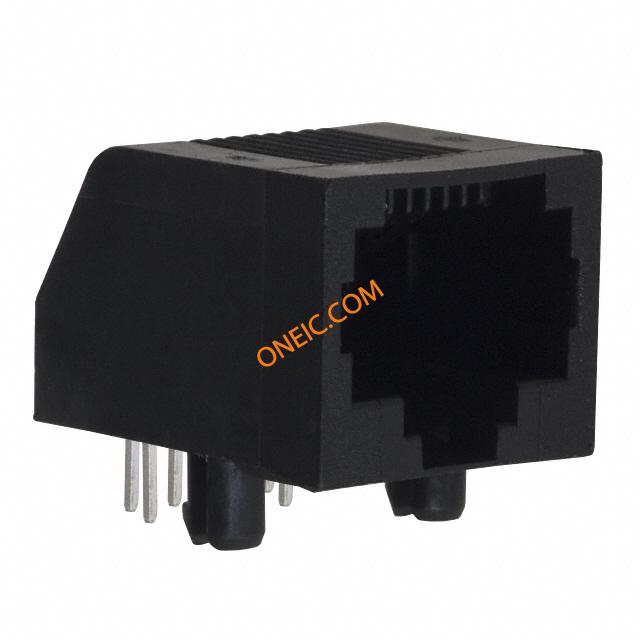

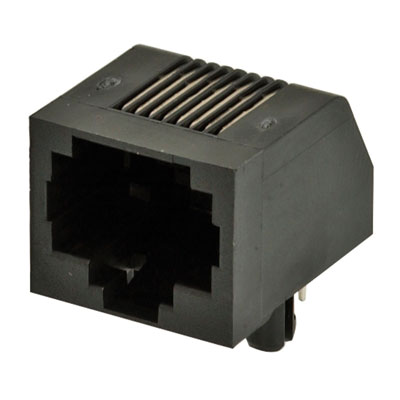

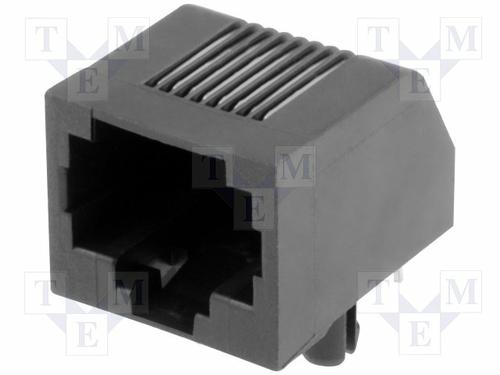

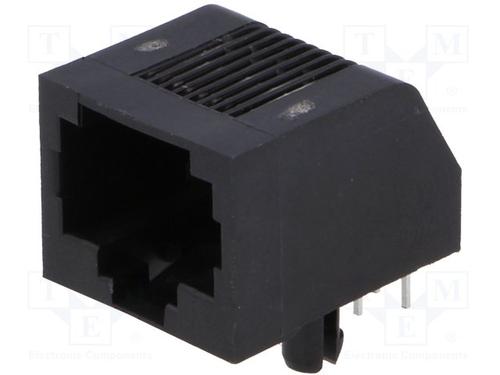

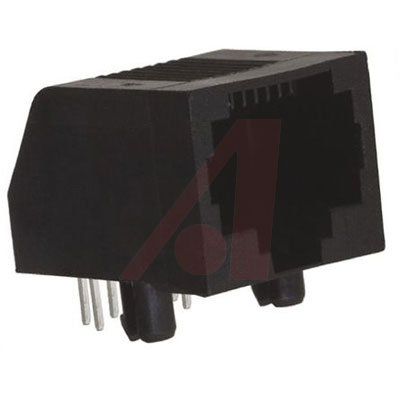

AMP FROM TE CONNECTIVITY  5555164-1.  模制连接器, RJ45, 插孔

**Features:**

* Meets or Exceeds FCC Part 68 Rules and Regulations; REAPE-76 and UL 1863, Communication Circuit Accessories

* Available in Both Top and Side Entry

* Available in Both Shielded and Unshielded Versions

* 20 dB Shielding Effectiveness from 30 MHz to 400 MHz

得捷:
CONN MOD JACK 8P8C R/A UNSHLD

立创商城:
RJ45 不带LED

贸泽:
Modular Connectors / Ethernet Connectors 8 PCB LO PRO R/A

e络盟:
AMP FROM TE CONNECTIVITY  5555164-1.  模制连接器, RJ45, 插孔

艾睿:
This modular rj-45 5555164-1 telephone and telecom connector from TE Connectivity is typically used in applications where high-speed signals are an essential part of maintaining the network. This F connector&s;s 8 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a right angle body orientation. It has a maximum voltage rating of 150 VAC. This connector has a single port. It has a female type gender. Its pitch is 2.54 mm. This device has a maximum current rating of 1.5 A/contact. The component will be shipped in tray format. This product is 15.44 mm long, 12.7 mm tall and 18.42 mm deep. This part has an operating temperature of -40 to 70 °C. It uses the solder termination method. 5555164-1 is housed in black polybutylene terephthalate.

Allied Electronics:
Jack; PCB Mounted Jack; 8; Polyester PBT; Phosphor Bronze; 0.5 in.

Jameco:
Connector RJ-45 Female 8 Position 2.54 mm Solder Right Angle Thru-Hole 8 Terminal 1 Port Cat 3

安富利:
Conn RJ-45 F 8 POS 2.54mm Solder RA Thru-Hole 8 Terminal 1 Port Tray Cat 3

TME:
Socket; RJ45; PIN:8; Pin layout:8p8c; THT; on PCBs

Verical:
Conn RJ-45 F 8 POS 1.02mm Solder RA Thru-Hole 8 Terminal 1 Port Cat 3 Box/Package/Tray

Newark:
# AMP - TE CONNECTIVITY  5555164-1  Modular Connector, Cat3, RJ45, Jack, 8 Contacts, 8 Positions, 1 Ports

MASTER:
Modular Connector - RJ45 Jack - 1 x 1 Port - 8P8C - Cat3 - Through Hole Mount.

Powell:
PCB Mounted Jacks - Single Port, Multi-port and Stacked

GOPHER:
Modular Jack 8 POSITION RJ45 RIGHT ANGLE PCB MOUNT THROUGH HOLE

Electro Sonic:
Modular Connector - RJ45 Jack - 1 x 1 Port - 8P8C - Cat3 - Through Hole Mount.
