5558382-1概述

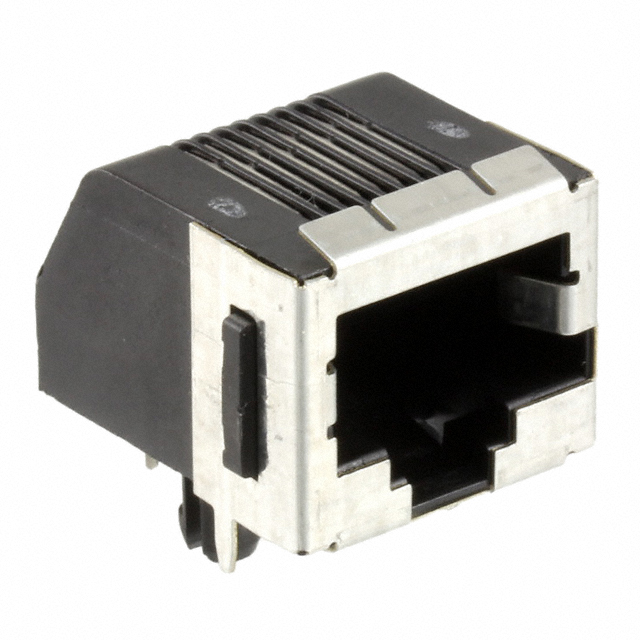

模块式连接器/以太网连接器 MJ,R/A,8P,SHLD

模块化 - 插孔 8p8c(RJ45,以太网) 90°角(直角) 屏蔽式,EMI指 Cat3


得捷:
CONN MOD JACK 8P8C R/A SHIELDED


贸泽:
模块式连接器/以太网连接器 MJ,R/A,8P,SHLD


艾睿:
You will never drop a call again with this rj-45 5558382-1 telephone and telecom connector from TE Connectivity. This F connector&s;s 8 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a right angle body orientation. It has a maximum voltage rating of 150 VAC. This connector has a single port. It has a female type gender. Its pitch is 2.54 mm. This component will be shipped in tray format. It uses the solder termination method. This product is 17.91 mm long, 12.7 mm tall and 18.42 mm deep. 5558382-1 is housed in black polybutylene terephthalate. This part has an operating temperature of -40 to 70 °C.


安富利:
Conn RJ-45 F 8 POS 2.54mm Solder RA Thru-Hole 8 Terminal 1 Port Tray Cat 3


Chip1Stop:
Conn RJ-45 F 8 POS 2.54mm Solder RA Thru-Hole 8 Terminal 1 Port Tray Cat 3


MASTER:
MODULAR JACK ASSEMBLY,8 POSITION, SHIELDED,KEYED,LOW PROFILE,RIGHT ANGLE, WITH PANEL GROUNDS AND PANEL STOPS


Powell:
PCB Mounted Jacks - Single Port, Multi-port and Stacked


Online Components:
MJ,R/A,8P,SHLD


5558382-1中文资料参数规格
技术参数

触点数 8

触点电镀 Gold, Tin over Nickel

排数 1

方向 Right Angle

易燃性等级 UL 94 V-0

针脚数 8

屏蔽 Yes

工作温度Max 70 ℃

工作温度Min -40 ℃

额定电压Max 150 VAC

封装参数

安装方式 Through Hole

外形尺寸

长度 17.91 mm

宽度 18.42 mm

高度 12.7 mm

物理参数

外壳颜色 Black

颜色 Black

触点材质 Phosphor Bronze

工作温度 -40℃ ~ 70℃

外壳材质 Polyester

其他

产品生命周期 Active

包装方式 Tray

制造应用 Signal

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

ELV标准 Compliant

海关信息

ECCN代码 EAR99

HTS代码 8536694040
