5557969-2概述

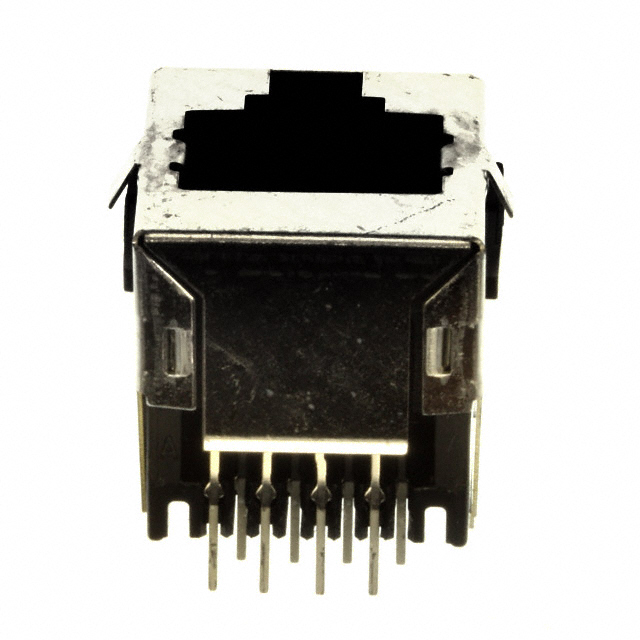

AMP FROM TE CONNECTIVITY  5557969-2  模制连接器, RJ45

MJ,TE,8P/8C,SHLD,PNL STOPS&G;

Product Highlights

Jack

Single Port Configuration

1 x 1 Jack Configuration

Jack Type = RJ45

Number of Positions = 8


得捷:
CONN MOD JACK 8P8C VERT SHIELDED


贸泽:
模块式连接器/以太网连接器 1X1 TE TH SHD STD C3 RJ45


e络盟:
模制连接器, RJ45


艾睿:
Retain a secure connection with this robust rj-45 5557969-2 telephone and telecom connector from TE Connectivity. This F connector&s;s 8 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a maximum voltage rating of 150 VAC. It has a straight body orientation. This connector has a single port. It has a female type gender. Its pitch is 2.54 mm. This device has a maximum current rating of 1.5 A/contact. This component will be shipped in tray format. This part has an operating temperature of -40 to 70 °C. 5557969-2 is housed in black polybutylene terephthalate. It uses the solder termination method. This product is 18.17 mm long, 16.77 mm tall and 16.77 mm deep.


安富利:
Conn RJ-45 F 8 POS 2.54mm Solder ST Thru-Hole 8 Terminal 1 Port Tray Cat 3


Chip1Stop:
Conn RJ-45 F 8 POS 2.54mm Solder ST Thru-Hole 8 Terminal 1 Port Tray Cat 3


Verical:
Conn RJ-45 F 8 POS 2.54mm Solder ST Thru-Hole 8 Terminal 1 Port Cat 3 Box/Package/Tray


Newark:
# AMP - TE CONNECTIVITY  5557969-2  Modular Connector, Cat3, RJ45, Jack, 8 Contacts, 8 Positions, 1 Ports


MASTER:
MODULAR JACK ASSEMBLY, TOP ENTRY,8 POSITION, FLANGELESS,SHIELDED,WITH PANEL


Powell:
PCB Mounted Jacks - Single Port, Multi-port and Stacked


Online Components:
MJ,TE,8P/8C,SHLD,PNL STOPS&G


Electro Sonic:
MJ,TE,8P/8C,SHLD,PNL STOPS&G


5557969-2中文资料参数规格
技术参数

触点数 8

极性 Male

触点电镀 Gold, Tin, Tin over Nickel

排数 1

方向 Vertical

易燃性等级 UL 94 V-0

针脚数 8

屏蔽 Yes

额定电流Max 1.5A/触头

工作温度Max 70 ℃

工作温度Min -40 ℃

额定电压Max 150 VAC

封装参数

安装方式 Through Hole

外形尺寸

长度 18.17 mm

宽度 16.77 mm

高度 16.77 mm

物理参数

外壳颜色 Black

颜色 Black

触点材质 Phosphor Bronze

工作温度 -40℃ ~ 70℃

外壳材质 Polyester

其他

产品生命周期 Active

包装方式 Tray

制造应用 Signal

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

ELV标准 Compliant

海关信息

ECCN代码 EAR99

HTS代码 8536694040

数据手册

在线购买5557969-2
型号: 5557969-2
描述:AMP FROM TE CONNECTIVITY  5557969-2  模制连接器, RJ45
