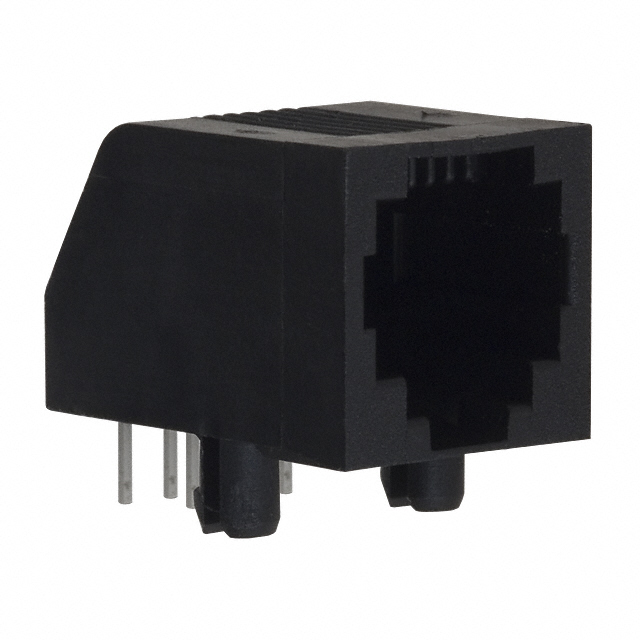

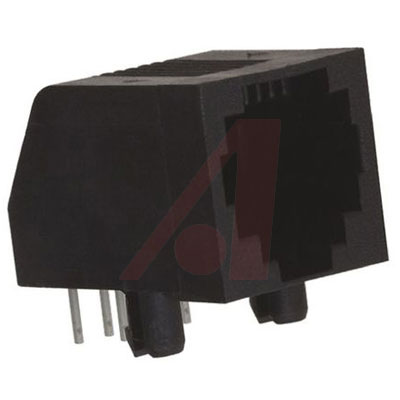

AMP FROM TE CONNECTIVITY 5555165-1 模块连接器, Cat3, RJ25, 插座, 6 触点, 6 路, 1 端口
模块化 - 插孔 6p6c(RJ11,RJ12,RJ14,RJ25) 90°角(直角) 无屏蔽 Cat3
得捷:
CONN MOD JACK 6P6C R/A UNSHLD
立创商城:
不带LED
e络盟:
模块连接器, Cat3, RJ25 插座, 1 x 1端口, 6P6C, Cat3, 通孔安装
艾睿:
Do not worry about a bad telecom line connection again with this rj-25 5555165-1 telephone and telecom connector manufactured from TE Connectivity. This F connector&s;s 6 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a female type gender. It has a right angle body orientation. This connector has a single port. Its pitch is 2.54 mm. It has a maximum voltage rating of 150 VAC. This device has a maximum current rating of 1.5 A/contact. The item will be shipped in tray orientation. 5555165-1 is housed in black polybutylene terephthalate. This part has an operating temperature of -40 to 70 °C. This product is 13.34 mm long, 12.7 mm tall and 18.29 mm deep. It uses the solder termination method.
Allied Electronics:
Modular Jack; 6 Pos.; RJ25; Cat 3; SideEntry Right Angle PCB Mount; 1X1
安富利:
6X6 MODJACK .127 GLD R/A
Chip1Stop:
Conn RJ-25 F 6 POS 2.54mm Solder RA Thru-Hole 6 Terminal 1 Port Tray Cat 3
TME:

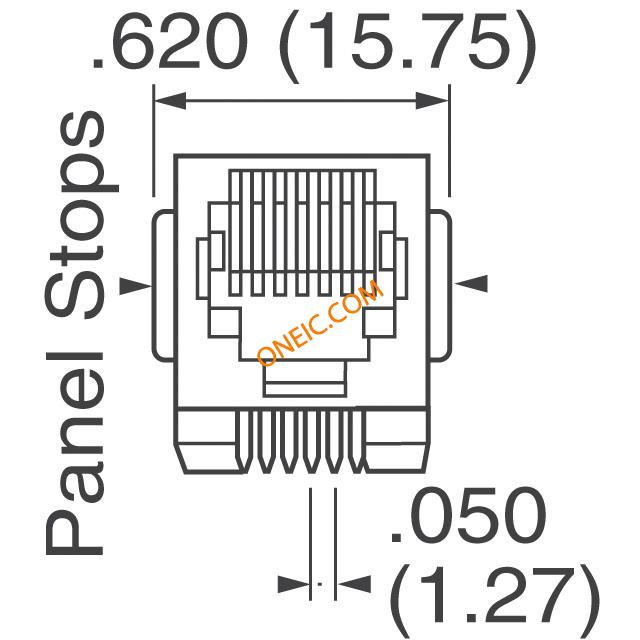

Socket; RJ12; PIN:6; Cat:3; with panel stop blockade, low profile
Verical:
Conn RJ-25 F 6 POS 1.27mm Solder RA Thru-Hole 6 Terminal 1 Port Cat 3 Box/Package/Tray
Newark:
# AMP - TE CONNECTIVITY 5555165-1 Modular Connector, RJ25, Jack, 6 Contacts, 6 Positions, 1 Ports
MASTER:
Modular Connector - RJ25 Jack - 1 x 1 Port - 6P6C - Cat3 - Through Hole Mount.
Powell:
PCB Mounted Jacks - Single Port, Multi-port and Stacked
Online Components:
M/J, LPF, R/A, 6P/6C, TIN, BUL
Electro Sonic:
Modular Connector - RJ25 Jack - 1 x 1 Port - 6P6C - Cat3 - Through Hole Mount.
触点数 6
极性 Male
触点电镀 Gold, Tin over Nickel
额定电流 1.5 A
排数 1
方向 Right Angle
易燃性等级 UL 94 V-0
针脚数 6
屏蔽 No
额定电流Max 1.5A/触头
工作温度Max 70 ℃
工作温度Min -40 ℃
额定电压Max 150 VAC
额定电压 150 VAC
接触电阻Max 30 mΩ
安装方式 Through Hole
引脚数 6
封装 Through Hole

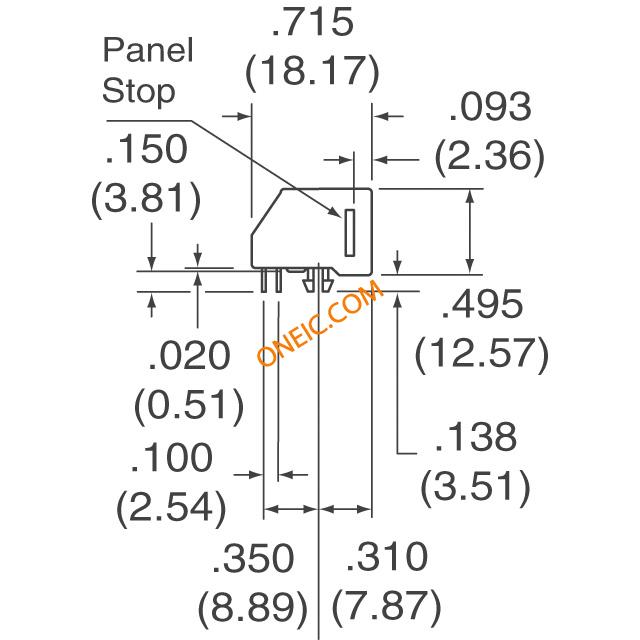

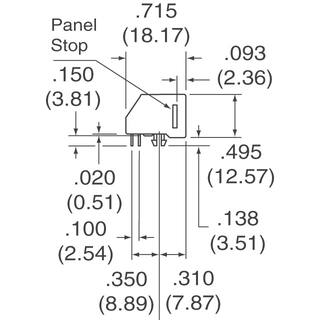

长度 13.34 mm
宽度 18.17 mm
高度 12.7 mm
封装 Through Hole
外壳颜色 Black
颜色 Black
触点材质 Phosphor Bronze
工作温度 -40℃ ~ 70℃
外壳材质 Polyester
产品生命周期 Active
包装方式 Tray
制造应用 Signal
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
HTS代码 8536694040
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
5555165-1 TE Connectivity 泰科 | 当前型号 | 当前型号 |
5555163-1 泰科 | 类似代替 | 5555165-1和5555163-1的区别 |
SS-7066-NF Stewart Connector | 类似代替 | 5555165-1和SS-7066-NF的区别 |
43202-6101 莫仕 | 功能相似 | 5555165-1和43202-6101的区别 |
