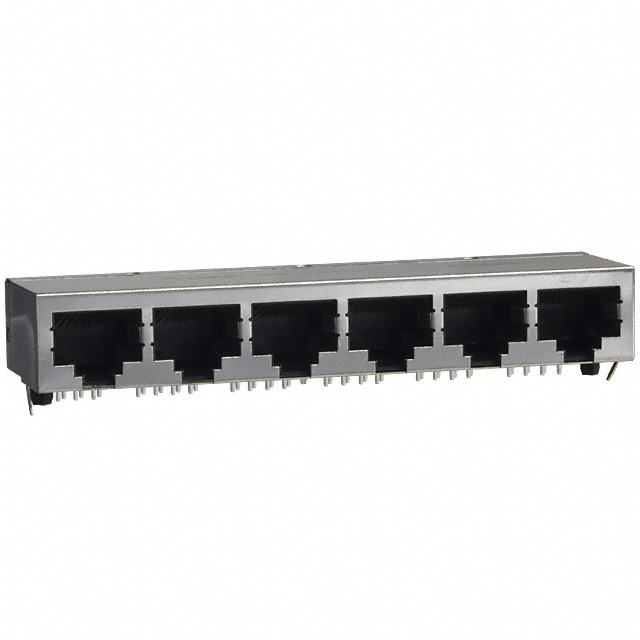

Conn RJ-45F 48POS 2.54mm Solder RA Thru-Hole 48 Terminal 6Port Tray Cat 4
This modular rj-45 telephone and telecom connector from is typically used in applications where high-speed signals are an essential part of maintaining the network. This F connector"s 48 contacts that are made out of phosphor bronze and plated with gold over nickel. This connector has 6 ports. It has a female type gender. Its pitch is 2.54 mm. It has a maximum voltage rating of 150 VAC. It has a right angle body orientation. This device has a maximum current rating of 1.5 A/contact. This component comes in tray packaging, useful for fast picking and placing of your parts. This product is 87.11 mm long, 13.63 mm tall and 21.34 mm deep. This part has an operating temperature of -40 to 80 °C. 5557572-3 is housed in black polychlorinated terphenyl. It uses the solder termination method.
触点数 48
触点电镀 Gold, Tin over Nickel
排数 1
方向 Right Angle
易燃性等级 UL 94 V-0
针脚数 8
屏蔽 Yes
额定电流Max 1.5A/触头
工作温度Max 80 ℃
工作温度Min -40 ℃
额定电压Max 150 VAC
安装方式 Through Hole
长度 87.1 mm
宽度 21.3 mm
高度 13.63 mm
外壳颜色 Black
颜色 Black
触点材质 Phosphor Bronze
工作温度 -40℃ ~ 80℃
外壳材质 Polyester
产品生命周期 Active
包装方式 Tray
制造应用 Signal
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
