5558068-1

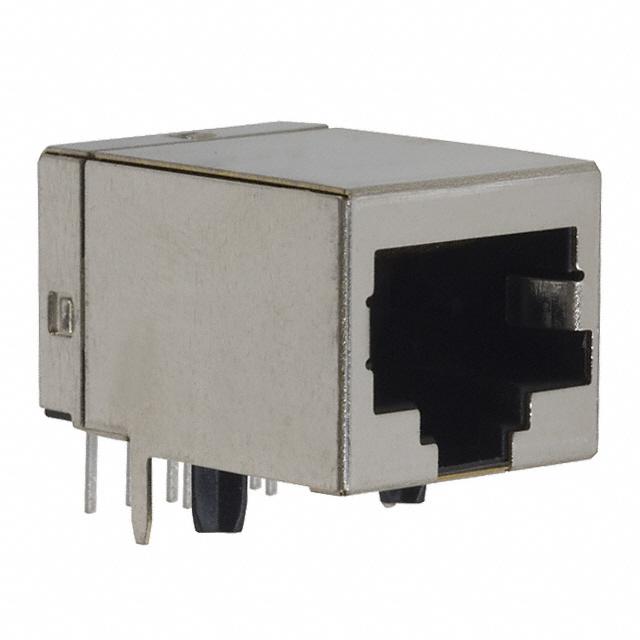

Conn RJ-45F 10POS 2.54mm Solder RA Thru-Hole 10 Terminal 1Port Tray Cat 3

This rj-45 telephone and telecom connector from is perfect for high-speed signals. This F connector"s 10 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a right angle body orientation. This connector has a single port. It has a female type gender. It has a maximum voltage rating of 150 VAC. Its pitch is 2.54 mm. This device has a maximum current rating of 1.5 A/contact. The component will be shipped in tray format. It uses the solder termination method. This product is 15.88 mm long, 13.64 mm tall and 21.34 mm deep. 5558068-1 is housed in black polychlorinated terphenyl. This part has an operating temperature of -40 to 80 °C.
