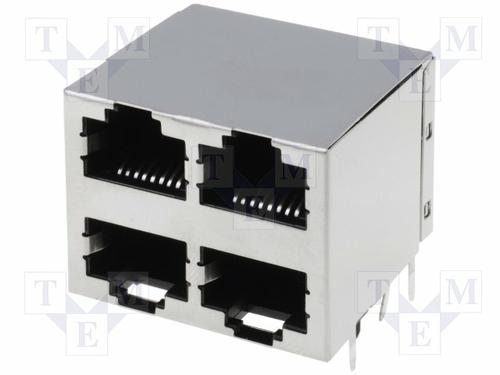

AMP FROM TE CONNECTIVITY 5569255-1 模块连接器, Cat5, RJ45, 插座, 8 触点, 8 路, 4 端口

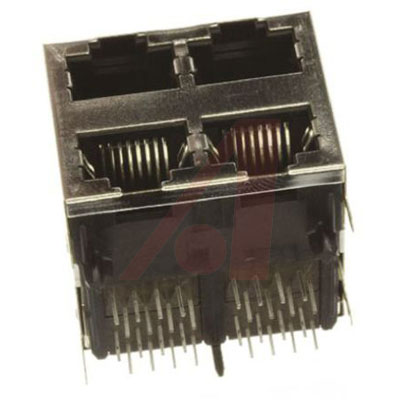

** Cat 5 Stacked and Multi Port Port PCB Mount Modular RJ45 Jacks**
A range of Cat 5 Stacked and Multi Port PCB right angle through hole mount modular RJ45 Jacks. These Cat 5 stacked and Multi Port PCB mount modular RJ45 jacks are shielded with black UL 94V-0 thermoplastic housings and preloaded with 8 contacts. These cat 5 stacked and multi-port RJ45 jack connectors are available with PCB and panel grounding and LEDs for status indication, please refer to additional data table for details.

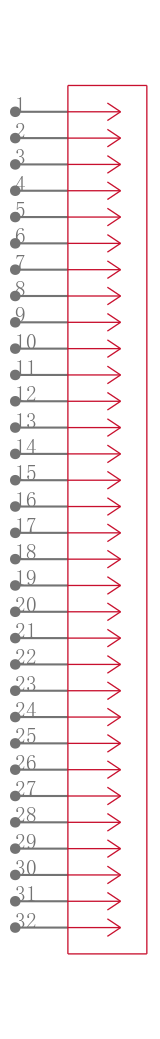

触点数 32
极性 Male
触点电镀 Gold, Tin, Tin over Nickel
额定电流 1.5 A
排数 2
方向 Right Angle
易燃性等级 UL 94 V-0
针脚数 8
屏蔽 Yes
额定电流Max 1.5A/触头
工作温度Max 80 ℃
工作温度Min -40 ℃
额定电压Max 150 VAC
额定电压 150 V
安装方式 Through Hole
引脚数 8
长度 31.24 mm
宽度 28.45 mm
高度 25.27 mm
外壳颜色 Black
颜色 Black
触点材质 Phosphor Bronze
工作温度 -40℃ ~ 80℃
外壳材质 Polyester
产品生命周期 Active
包装方式 Tray
制造应用 Industrial, 通信与网络, Signal, 工业, Communications & Networking, 计算机和计算机周边, Computers & Computer Peripherals
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
REACH SVHC标准 No SVHC
ECCN代码 EAR99
HTS代码 8536694040
